智能LED调光器LED Intelligent Dimmer

LT-3200系列LED调光器是一款专用于LED照明的智能调光开关，采用目前的PWM（脉宽调制）数字化亮度调节技术；可以手动旋钮无级调节亮度，也可以用IR无线遥控器来远距LED调光；适用于商业和家庭标准86型开关插座底盒的安装，可明装或者暗装；安装LED调光器可满足商业或家庭照明不同时段与不同环境的光线需要，延长LED寿命，节能省电；LED调光器可控制小功率和大功率的LED灯条、LED灯带、SMD软灯条、LED面板灯、LED灯杯、LED射灯、LED筒灯、LED天花灯、LED壁灯、led吸顶灯、LED吊灯等等LED照明灯。LT-3200 series LED intelligent dimmer is dedicated to adjust the brightness of LED lights, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present, users can either operate manually or use the IR wireless remote controller to control the brightness in the distance, they are suitable for commercial and household 86-style socket installation, the socket can be installed outside or inside the wall. LED intelligent dimmer can meet different brightness requirements at different time, and can extend life tenure of LED, suitable for adjusting the brightness of both low-power and hi-power LED illumination lights, energy-saving.

性能参数Performance Features

1、0～100%亮度调节，旋钮式无级调光 无线遥控器调光，方便实用。0~100% brightness adjust, infinite knob style dimming wireless IR remote dimming, easy to operate;

2、256级灰度，调节灯光柔和稳定细腻，无频闪现象。256 grey scales, soft & smoothly, without flicker.

3、25%、50%、75%、100%四种亮度快速选择。25%、50%、75%、100% 4 DIY modes, fast adjust.

4、四种DIY情景模式、延时功能、面板荧光(夜光)指示等多项人性化设计。4 DIY modes, with Fluorescent Indicator & delay off button, users friendly.

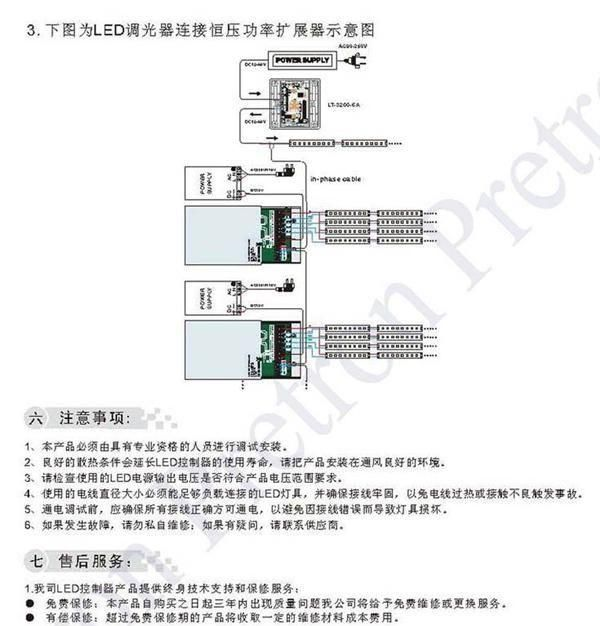

5、恒压和恒流的调光器超出负载范围可连接功率扩展器放大功率。When load of constant current/voltage is beyond, add extra repeater to expand power.

6、恒压、恒流、DMX512输出多款LED调光器型号，可方便控制各种不同电路原理的LED照明产品。Three types available, suitable for LED lamps in different circuits.

dzsc/19/1101/19110188.jpg

 产品参数Product parameter

LT-3200-6A恒压调光器CV Dimmer

输入电源Input　voltage: DC12V～DC48V

信号输出Output signal: 恒压PWM

负载电流:6A

输出功率: 75W/150W/220W280W(12V/24V/36V/48V)

调光范围Dimming range: 0～100%

灰度级别Scale levels: 256级

工作温度working temperature: -30℃～55℃

包装重量Packaging weight

开关尺寸Switch Dimension: L87×W87(mm)

遥控尺寸Remoter Dimension: L86×W33(mm)

包装尺寸Packaging Dimension: L96×W91×H61(mm)

重量(毛重) Weight (G.W): 200克

dzsc/19/1101/19110188.jpg

dzsc/19/1101/19110188.jpg

dzsc/19/1101/19110188.jpg

dzsc/19/1101/19110188.jpg

dzsc/19/1101/19110188.jpg

dzsc/19/1101/19110188.jpg

dzsc/19/1101/19110188.jpg

dzsc/19/1101/19110188.jpg
