您所在的位置:仪器仪表网> 电子元器件>5A恒压功率扩展器 输出功率: 75W(5V) 180W(12V) 360W(24V)

5A恒压功率扩展器 输出功率: 75W(5V) 180W(12V) 360W(24V)

价 格: 1.00
加工定制:
种类:LED驱动器
型号/规格:LT-3060 恒压功率扩展器CV Power Repeater输出功率: 75W(5V) 180W(12V) 360W(24V)
品牌/商标:Pretron普创
显示颜色:全彩
输入信号:恒压/恒流PWM
负载电流:5A *3路 Max 15A
输出功率:75W(5V) 180W(12V) 360W(24V)

dzsc/19/1101/19110173.jpg

LED功率扩展器(PWM调光驱动器) LED Power Repeater (PWM Dimming Driver)



LED功率扩展器适用我公司所有单色和RGB全彩功率型LED控制器的功率放大,功率扩展器可接受PWM(脉宽调制)调光和效果变化,每增加一个扩展器就可以多连接一倍至三倍的LED灯数量,理论上可以连接无限个功率扩展器。LED power repeater is suitable for all of our single color & RGB controllers to expand power output, it supports PWM control and can connect one to three times more LEDs by adding one more power repeater, and unlimited power repeaters can be connected together theoretically.



恒压跟恒流的扩展器可以混合连接,方便不同电压、大功率和小功率的LED灯具由一台主控统一控制。The constant voltage power repeater and constant current power repeaters can be connected together, which is convenient for controlling LEDs with different voltage and power.



LED功率扩展器信号输入与输出具有光电隔离5KV的安全保护功能。Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 5KV



dzsc/19/1101/19110173.jpg

 产品参数Product Parameter



LT-3060 恒压功率扩展器CV Power Repeater



输入信号Input signal: 恒压/恒流PWM / CV/CC PWM

输入电源Input voltage: DC5V~DC24V

负载电流Max load current:5A*3路 Max15A/5A*3CH Max 15A

输出功率Max output power:75W(5V) 180W(12V) 360W(24V)

工作温度Working temperature: -30~65

产品尺寸Dimension: L121*W39*H39(mm)

包装尺寸Package Size: L123*W42*H42(mm)

重量(毛重) Weight (G.W):100g

dzsc/19/1101/19110173.jpg

dzsc/19/1101/19110173.jpg

dzsc/19/1101/19110173.jpg

dzsc/19/1101/19110173.jpg

dzsc/19/1101/19110173.jpg

dzsc/19/1101/19110173.jpg

dzsc/19/1101/19110173.jpg

dzsc/19/1101/19110173.jpg珠海市普创电子科技有限公司|Zhuhai Pretron Electronics Technology Limited

珠海市普创电子科技有限公司
公司信息未核实
  • 所属城市:广东 珠海
  • [联系时请说明来自维库仪器仪表网]
  • 联系人: 易淑超
  • 电话:
  • 传真:
  • 手机:18928086279
  • QQ :
公司相关产品

恒流0-10V调光驱动器,输入信号:0/1-10V or PUSH-DIM

信息内容:

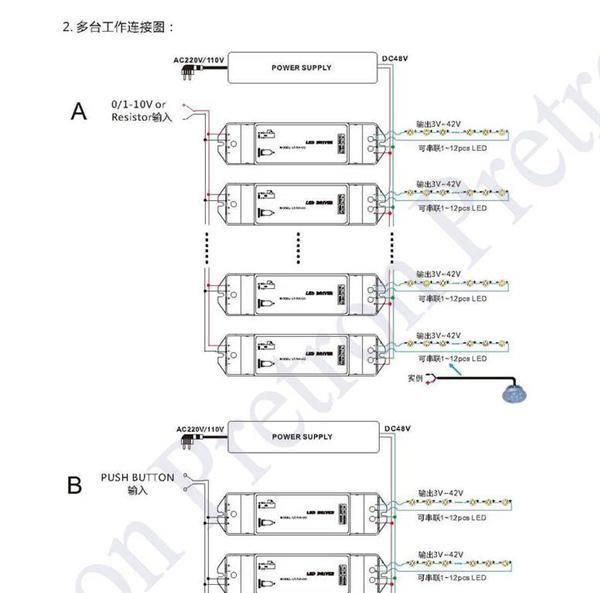

dzsc/19/1101/19110174.jpg0/1-10V LED调光驱动器0/1-10V LED Dimming Driver 随着LED照明的兴起,LED照明灯光在酒店、商业中心、家庭逐渐大量应用,LED和 荧光灯在同一场合应用的机会越来越多,如果用传统比较成熟的荧光灯调光系统把LED纳入系统控制是非常方便的,但LED照明调光原理和传统的荧光灯调光原理不一样,荧光灯调光系统不能直接对LED进行调光。Along with the rise of LED illumination, LED lamps are widely used in hotel, business center, household decoration etc. there are more and more chances to use LED and fluorescent lights at the same project, if LED lamps and fluorescent lights can be controlled together by a traditional fluorescent dimming system, it will make everything more convenient, but the dimming principles of LED and traditional fluorescent lights are different, LED lights can not be dimmed by the fluorescent dimming controller directly. 我司推出的0-10V至PWM系列调光驱动器完美解决了荧光灯调光系统与LED照明兼容的问题,可以利用众多的传统照明智能调光系统控制LED灯光, 例如各种LED天花灯、LED筒...

详细内容>>

6A多功能单色LED控制器 功率: 90W/220W/450W(5V/12V/24V)

信息内容:

dzsc/19/1101/19110175.jpg多功能单色LED控制器Multi-function LED Single Color Controlller LT-311多功能LED控制器是一款通用型高性能的调光功率型控制器,采用目前的PWM(脉宽调制)数字化亮度调节技术;ABS工程塑料外壳,轻触式功能按钮,体积轻巧,美观大方;广泛控制所有单色的LED照明装饰灯具产品。LT-311 is a universal high-performance dimming controller, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present. ABS engineering plastic panel, with soft-touch function button and exquisite appearance, can control various LED single color ligths. 性能参数Performance parameter:1)、0-100%亮度调节,8种功能模式,256级灰度级别。0~100% brightness adjust,8 changing modes,256 scale levels.2)、自动适应DC5-24V工作电压范围内的单色LED灯具。Automatically adapt to the single color Led light which works between DC5V-24V.3)、三通道输出控制,输出18A总电流,可以满负荷工作。3 Channels output control, maximum output18A total ,sustain to full-load work.4)、内置频闪...

详细内容>>
