供应优质电源稳压IC HT7133－1 SOT89
| 价 格： | 0.48 | |
| 品牌/商标： | HOLTEK台湾合泰 | |
| 型号/规格： | HT7133 SOT-89 | |
| 批号： | 1003588 | |
| 封装： | SOT-89 | |
| 营销方式： | 厂家直销 | |
| 产品性质： | 热销 | |
| 处理信号： | 数字信号 | |
| 制作工艺： | 半导体集成 | |
| 导电类型： | 双极型 | |
| 集成程度： | 超大规模 | |
| 工作温度： | -40~125（℃） | |
| 类型： | 稳压IC | |
| 应用范围： | 放大 |
Features
☆★ Low power consumption
☆★ Low voltage drop
☆★Low temperature coefficient
☆★High input voltage (up to 24V)
☆★ TO-92 and SOT-89 packages
Applications
☆★ Battery-powered equipment
☆★ Communication equipment
☆★ Audio/Video equipment
General Description
The HT71XX series is a set of three-terminal
low power high voltage regulators implemented
in CMOS technology. They allow input voltages
as high as 24V. They are available with several
fixed output voltages ranging from 3.0V to
5.0V. CMOS technology ensures low voltage
drop and low quiescent current.
Although designed primarily as fixed voltage
regulators, these devices can be used with external
components to obtain variable voltages
and currents.
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈煌全
- 电话：0769-85325785
- 传真：0769-85325785
- 手机：
- QQ ：
供应优质场效应管MOS NDS7002 SOT23

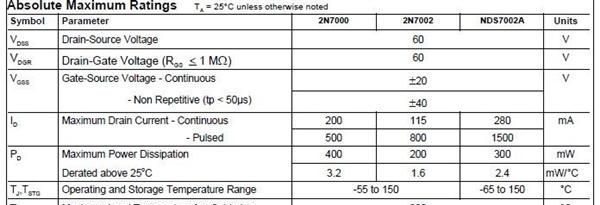

信息内容：dzsc/19/1085/19108554.jpgGeneral DescriptionThese N-Channel enhancement mode field effect transistorsare produced using Fairchild's proprietary, high cell density,DMOS technology. These products have been designed tominimize on-state resistance while provide rugged, reliable,and fast switching performance. They can be used in mostapplications requiring up to 400mA DC and can deliverpulsed currents up to 2A. These products are particularlysuited for low voltage, low current applications such as smallservo motor control, power MOSFET gate drivers, and otherswitching applications.Features☆★High density cell design for low RDS(ON).☆★Voltage controlled small signal switch.☆★Rugged and reliable.☆★High saturation current capability."
供应场效应管原装IRF840PBF VISHAY
信息内容：FEATURES• Dynamic dV/dt Rating• Repetitive Avalanche Rated• Fast Switching• Ease of Paralleling• Simple Drive Requirements• Lead (Pb)-free AvailableDESCRIPTIONThird generation Power MOSFETs from Vishay provide thedesigner with the best combination of fast switching,ruggedized device design, low on-resistance andcost-effectiveness.The TO-220 package is universally preferred for allcommercial-industrial applications at power dissipationlevels to approximately 50 W. The low thermal resistanceand low package cost of the TO-220 contribute to its wideacceptance throughout the industry.AvailableRoHS*COMPLIANT"
