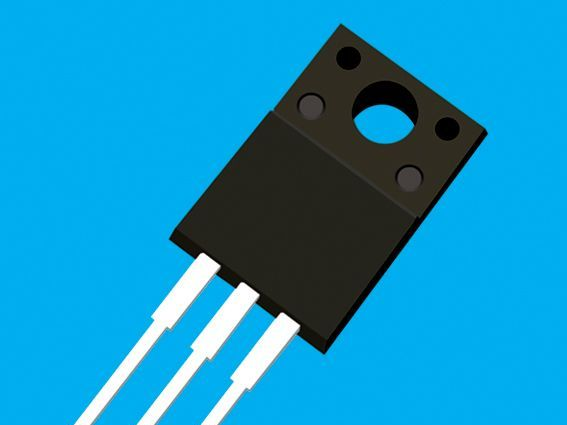

无锡固电ISC 供应2SA1060三极管
| 价 格： | 4.20 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SA1060 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -80V(Min)
·High Power Dissipation
·Complement to Type 2SC2484
APPLICATIONS
·Designed for high power audio frequency amplifier
applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -80 | V |
VCEO | Collector-Emitter Voltage | -80 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -5 | A |
ICM | Collector Current-Peak | -8 | A |
PC | Collector Power Dissipation @ TC=25℃ | 60 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -30mA ; IB= 0 | -80 |
| V | |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -3A; IB= -0.3A |
|
| -2.0 | V |
VBE(on) | Base-Emitter On Voltage | IC= -3A ; VCE= -5V |
|
| -1.8 | V |
ICBO | Collector Cutoff Current | VCB= -80V ; IE= 0 |
|
| -50 | μA |
IEBO | Emitter Cutoff Current | VEB= -3V; IC= 0 |
|
| -50 | μA |
hFE-1 | DC Current Gain | IC= -0.02A ; VCE= -5V | 20 |
|
|
|
hFE-2 | DC Current Gain | IC= -1A ; VCE= -5V | 40 |
| 220 |
|
hFE-3 | DC Current Gain | IC= -3A; VCE= -5V | 20 |
|
|
|
fT | Current-Gain—Bandwidth Product | IC= -0.5A; VCE= -5V |
| 20 |
| MHz |
u hFE-2Classifications
R | Q | P |
40-80 | 60-120 | 100-200 |
