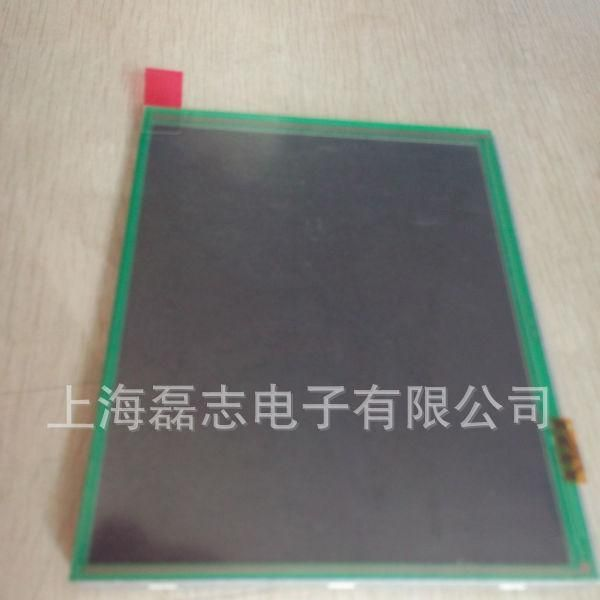

供应AM640480G2高分辨率、高亮背光和超长使用寿命的5.7寸TFT
| 价 格： | 8.80 | |
| 加工定制： | 是 | |
| 品牌/商标： | 晶采 | |
| 型号/规格： | AM640480G2系列 | |
| 种类： | TFT型液晶屏(模块) | |
| 屏幕尺寸： | 5.7（英寸） | |
| 色彩： | 265K | |
| 亮度： | 500 | |
| 对比度： | 250：1 | |
| 分辨率： | 640480 | |
| 像素： | 640480 | |
| 响应时间： | 50（ms） | |
| 可视角度： | 100/100/140/140（°） |
| Technology | TFT | |
| Size | 5.7" | |
| Display Area | 115.2（W）x 86.4（H) | |
| Outline（mm） | 127（W）x 98.43（H） x 6.6（D） | |
| Resolution | 640 x RGB x 480 | |
| Display Color | 262K | |
| Back-Light | LED | |
| LCD Controller | Option | |
| Brightness | 500 | |
| Contrast | 250:1 | |
| Response Time | 50ms | |
| Viewing Angle | 100/100/140/140 | |
| Interface | RGB/LCDS/MPU | |
| Mode | Digital |
- 所属城市：
- [联系时请说明来自维库仪器仪表网]
- 联系人：
- 电话：
- 传真：
- 手机：
- QQ ：
供应AM640480GSTNQW00H,通过电磁兼容测试
信息内容：2. PHYSICAL SPECIFICATIONSItem Specifications unitDisplay resolution(dot) 640RGB (W) x 480(H) dotsDisplay area 116.16 (W) x 87.12 (H) mmPixel pitch 0.18 (W) x 0.18 (H) mmColor configuration R.G.B Vertical stripeOverall dimension 127.0(W)x98.43(H)x7.4(D)---(Typ) mmSurface treatment Antiglare , Hard-Coating(3H)Brightness 500 cd/m2Contrast ratio 500 : 1Backlight unit LEDDisplay color 262,144 colorsViewing Direction 12 o’clockDisplay Mode Normally White"
供应AM640480G2TNQWTA0H带LVDS接口
信息内容：1. INTRODUCTIONThis is a color active matrix TFT-LCD that uses amorphous silicon TFT as a switchingdevice . This model is composed of a 5.7inch TFT-LCD panel , a driving circuit and LEDbacklight system . This TFT-LCD has a high resolution (640(R.G.B) X 480) and candisplay up to 262,144 colors.1-1. Features● VGA Resolution● 6 Bits color driver with LVDS interface● Wide range operation temperature2. PHYSICAL SPECIFICATIONSItem Specifications unitDisplay resolution(dot) 640RGB (W) x 480(H) dotsDisplay area 115.2 (W) x 86.4 (H) mmPixel pitch 0.18 (W) x 0.18 (H) mmColor configuration R.G.B Vertical stripeOverall dimension 127.0(W)x98.43(H)x7.5(D)---(Typ) mmSurface treatment Antiglare , Hard-Coating(3H)Brightness 500 cd/m2Contrast ratio 250 : 1Backlight unit LEDDisplay color 262,144 colorsViewing Direction 12 o’clockDisplay Mode Normally White
