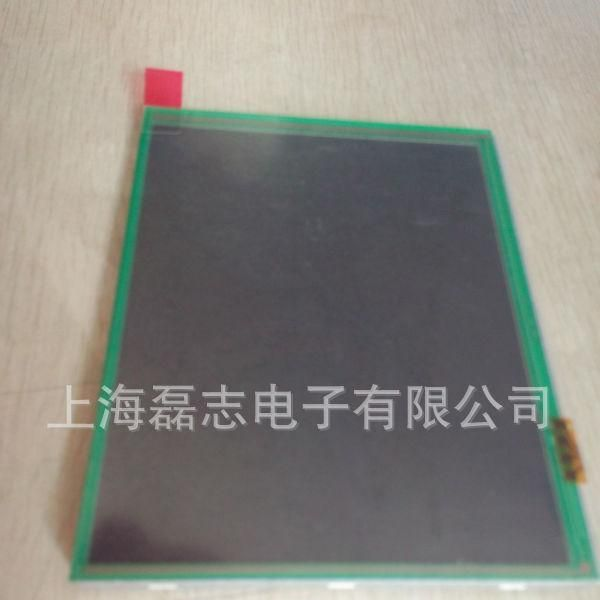

供应AM640480G2TNQWTA0H带LVDS接口
| 价 格： | 8.80 | |
| 加工定制： | 是 | |
| 品牌/商标： | ampire | |
| 型号/规格： | AM640480G2TNQWTA0H | |
| 种类： | TFT型液晶屏(模块) | |
| 屏幕尺寸： | 5.7（英寸） | |
| 色彩： | 262K | |
| 亮度： | 500 | |
| 对比度： | 250:1 | |
| 分辨率： | 640480 | |
| 点距： | 0.18*0.18（mm） | |
| 响应时间： | 5（ms） | |
| 可视角度： | 80/80/80/80（°） |
1. INTRODUCTION
This is a color active matrix TFT-LCD that uses amorphous silicon TFT as a switching
device . This model is composed of a 5.7inch TFT-LCD panel , a driving circuit and LED
backlight system . This TFT-LCD has a high resolution (640(R.G.B) X 480) and can
display up to 262,144 colors.
1-1. Features
● VGA Resolution
● 6 Bits color driver with LVDS interface
● Wide range operation temperature
2. PHYSICAL SPECIFICATIONS
Item Specifications unit
Display resolution(dot) 640RGB (W) x 480(H) dots
Display area 115.2 (W) x 86.4 (H) mm
Pixel pitch 0.18 (W) x 0.18 (H) mm
Color configuration R.G.B Vertical stripe
Overall dimension 127.0(W)x98.43(H)x7.5(D)---(Typ) mm
Surface treatment Antiglare , Hard-Coating(3H)
Brightness 500 cd/m2
Contrast ratio 250 : 1
Backlight unit LED
Display color 262,144 colors
Viewing Direction 12 o’clock
Display Mode Normally White
