厂家供应206圆柱晶振12M 24M 27M
| 价 格： | 0.30 | |
| 加工定制： | 是 | |
| 品牌： | 济源晶体 | |
| 型号： | 206/308 | |
| 种类： | 谐振器 | |
| 标称频率： | 6MHZ-27MHZ（MHz） | |
| 调整频差： | 30PPM（MHz） | |
| 温度频差： | 20PPM（MHz） | |
| 总频差： | 30PPM（MHz） | |
| 负载电容： | 20（pF） | |
| 负载谐振电阻： | 30-200（Ω） | |
| 激励电平： | 100（mW） | |
| 基准温度： | -20-70（℃） | |
| 封装： | 直插封装 | |
| 类型： | 其他IC | |
| 批号： | JYJT49S |
ELECTRICAL SPECIFICATIONS FOR 2 x 6mm & 3 x 8mm
Frequency | 30KHz-350KHz , |
Frequency Tolerance (at 25°C) | ±20ppm |
ESR | 32KHz-40KHz: 40Kohm Max |
40KHz-60KHz: 30Kohm Max | |
60KHz-70KHz: 25Kohm Max | |
70KHz-200KHz: 22Kohm Max | |
200KHz-3500KHz: 20Kohm Max | |
Turnover Temperature | 25± 5°C |
Frequency Temperature Curve | -0.034(±0.006)ppm/°C² |
StorageTemperature Range | -55°Cto 125°C |
Operable Temperature Range | -10°Cto 60°C,-20 70’C,-40 85’C |
Shunt Capacitance (C0) | 2.0pF Typ |
Dynamic Capacitance (C1) | 4.0pF Typ |
Driver Level (Typical) | 1 µW Max |
Load Capacitance(CL) | 12.5pF, |
Aging @25°C1styear (Max) | ±3ppm/year |
REMARK:SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER.
Frequency VS Temperature Curve
ELECTRICAL SPECIFICATIONS FOR 3 x 9mm & 3 x 10mm
Frequency | 3.579 ~3.99 | 4.000 ~4.49 | 4.500 ~ 4.99 | 5.000 ~6.99 | 7.000 ~9.99 | 10.000 ~11.99 | 12.000 ~13.99 | 14.000 ~15.99 | 16.000 ~27.00 |
Frequency Tolerance | /-15ppm, /-30ppm , /-50ppm, or specify | ||||||||
ESR (ohm) | 180 | 150 | 120 | 100 | 80 | 70 | 60 | 50 | 40 |
Load Capacitance | 12/16/18/20/32pF | ||||||||
Drive Level | 10~100 uW | ||||||||
Frequency Stability over Operating Temperature | /-15ppm, /-30ppm , /-50ppm, or specify | ||||||||
Shunt Capacitance | 5pF Max | ||||||||
Aging | /-5ppm/year | ||||||||
Insulation Resistance | 500Mohm Min (DC 100V) | ||||||||
Operating Temperature | -10’C ~ 60’C / -20’C ~ 70’C | ||||||||
Storage Temperature | -30’C ~ 85‘C | ||||||||
PACKING AND DIMENSIONS
Dimensions (Unit: mm)
MODEL | A | B | C | D | E |
2×6mm | 6.3 | 1.95 | 0.7 | 7.0 | 0.2 |
3×8mm | 8.3 | 3.1 | 1.1 | 10.0 | 0.3 |
3×9mm | 9.3 | 3.1 | 1.1 | 10.0 | 0.3 |
3x10mm | 10.1 | 3.1 | 1.1 | 10.0 | 0.3 |
- 所属城市：江苏 连云港
- [联系时请说明来自维库仪器仪表网]
- 联系人： 朱侠蓉
- 电话：0518-87612002
- 传真：0518-87612002
- 手机：
- QQ ：
表晶/柱晶/晶振/晶体/谐振器/直插晶振/石英晶体谐振器
信息内容：连云港济源晶体元件有限公司（JYJT）ELECTRICAL SPECIFICATIONS FOR 2 x 6mm & 3 x 8mmFrequency30KHz-350KHz ,Frequency Tolerance (at 25°C)±20ppmESR32KHz-40KHz: 40Kohm Max40KHz-60KHz: 30Kohm Max60KHz-70KHz: 25Kohm Max70KHz-200KHz: 22Kohm Max200KHz-3500KHz: 20Kohm MaxTurnover Temperature25± 5°CFrequency Temperature Curve-0.034(±0.006)ppm/°C²StorageTemperature Range-55°Cto 125°COperable Temperature Range-10°Cto 60°C,-20 70’C,-40 85’CShunt Capacitance (C0)2.0pF TypDynamic Capacitance (C1)4.0pF TypDriver Level (Typical)1 µW MaxLoad Capacitance(CL)12.5pF,Aging @25°C1styear (Max)±3ppm/year

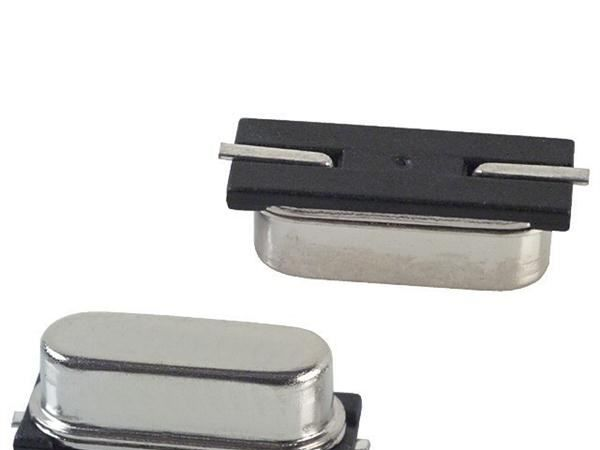

49SMD晶振/贴片晶体/谐振器/晶体/石英晶体/贴片晶振/振荡器
