香港交货奇美液晶屏22w液晶屏M220Z1-L03
| 价 格： | 104.00 | |
| 品牌/商标： | 奇美cmo | |
| 型号/规格： | M220Z1-L03 | |
| 种类： | LCD液晶屏 | |
| 屏幕尺寸： | 22（英寸） | |
| 亮度： | 300 | |
| 对比度： | 1000：1 |
奇美电子以优越前瞻技术和设计能力，提供薄型化、宽广视角、快速反应、高分辨率、高对比、高色彩饱和度全系列多功能应用的宽屏幕桌上型液晶显示器：产品包括16:10和16:9宽屏幕面板。因应信息产品个人化、娱乐化趋势，奇美电子业界制定了16:10商用和16:9娱乐用宽屏幕面板规格，领导了宽屏幕市场潮流。
| Panel Size | 22" Wide (16:10) |
| Technology | TN |
| Resolution | 1680x1050 |
| Pixel Pitch(mm) | 0.282 |
| Active Area(mm) | 473.76x296.1 |
| Outline(mm) | 493.7x320.1x16.5 |
| Luminance(nits) | 300 |
| View Angle (U/D/R/L) | 80/80/85/85 |
| Contrast Ratio | 1000:1 |
| Support Color | 16.7M |
| Response Time(ms) | 5 |
| Weight (g) | 2550 |
| Electrical Interface | LVDS |
| Mass Production | MP |
| Remark | Color Gamut (72% NTSC) |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄熙承
- 电话：0755-83954981
- 传真：0755-83954981
- 手机：
- QQ ：

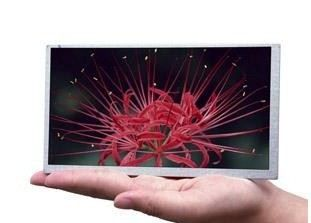

香港供應京東方BOE7寸IPS液晶屏1024x600 HV070WS1-100
信息内容：HV070WS1-100 is a color active matrix TFT LCD module using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This module has a 7.01 inchdiagonally measured active area with WSVGA resolutions (1024 horizontal by 600 verticalpixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged invertical Stripe and this module can display 16.7M colors. The TFT-LCD panel used for thismodule is a low reflection and higher color type.? Thin and Light Weight? 3.7 V Logic Power & Back-light power Supply? 1 Channel LVDS Interface? SMD LED (20EA) Array (Bottom Side/Horizontal Direction)? 16.7M Colors? Data Enable Signal Mode? Green Product (RoHS) & Halogen free Active area 153.6(H) ×90.0(V) mmNumber of pixels 1024(H) ×600(V) pixelsPixel pitch 0.15(H) ×0.15(V) mmPixel arrangement RGB Vertical StripeDisplay colors 16.7M colorsDisplay mode Normally BlackOutline dimension 164.05?0.2(H)×99.96?0.15(V)×2.35 ?0.15(D) mm ...
香港交群创新奇美17.3寸液晶屏N173O6-L02
信息内容：1.1 OVERVIEWN173O6 - L02 is a 17.3” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDSinterface. This module supports 1600 x 900 HD mode and can display 262,144 colors. The optimumviewing angle is at 6 o’clock direction. The inverter module for Backlight is built in.1.2 FEATURES- HD (1600 x 900 pixels) resolution- DE only mode- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock- LED1.3 APPLICATION- TFT LCD Notebook1.4 GENERAL SPECIFICATI0NSItem Specification Unit NoteActive Area 382.08 (H) x 214.92 (V) (17.3” diagonal) mmBezel Opening Area 386.88 (H) x 218.32 (V) mm (1)Driver Element a-si TFT active matrix - -Pixel Number 1600 x R.G.B. x 900 pixel -Pixel Pitch 0.2388 (H) x 0.2388(V) mm -Pixel Arrangement RGB vertical stripe - -Display Colors 262,144 color -Transmissive Mode Normally white - -Surface Treatment Hard coating (3H), Glare Type - -1.5 MECHANICAL SPECIFICATIONSItem Min. Typ. Max. Unit NoteHorizontal (H) ...
