供应石英晶振TG5：5.0*3.2mm SMD
| 价 格： | 面议 | |
| 产品品牌： | 维拓 | |
| 产品型号： | TG5，TG7 |
TG5
Frequency Range:12.000MHz to 48.000MHz
Load Capacitance(CL):Series, 16pF, 20pF,30pF, 32pF,or specify
Frepuency Tolerance (at 25°C) : /-10ppm— /-50ppm or specify
Operating Temperature Range:-10°C— 60°C(standard),-20°C— 70°C,-40°C—85°C,or Specity
Frepuency Stability Over Operatin Temperature range g: /-10ppm— /-50ppm or specify
Storage Temperatue Range: -55°C to 125°C
Shunt Capacitance(Co):5.0pF Max
Drive Level(Typical):10μW—100μW
Aging @25°C1 st year(Max): /-3ppm, /-5ppm /year
Shock Resistance:Drop test of 3 times on 2mm stainless plate from 75cm height
Quartz crystal 7.0*5.0mm SMD
TG7
Frequency Range:6.000MHz to 80.000MHz
Load Capacitance(CL):Series, 16pF, 20pF,30pF, 32pF,or specify
Frepuency Tolerance (at 25°C) : /-10ppm— /-50ppm or specify
Operating Temperature Range:-10°C— 60°C(standard),-20°C— 70°C,-40°C—85°C,or Specity
Frepuency Stability Over Operating Temperature range: /-10ppm— /-50ppm or specify
Storage Temperatue Range: -55°C to 125°C
Shunt Capacitance(Co):5.0pF Max
Drive Level(Typical):10μW—100μW
Aging @25°C1 st year(Max): /-3ppm, /-5ppm /year
Shock Resistance:Drop test of 3 times on 2mm stainless plate from 75cm height
- 所属城市： 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴娟丽
- 电话：86-755-82677582
- 传真：86-755-82679302
- 手机：
- QQ ：

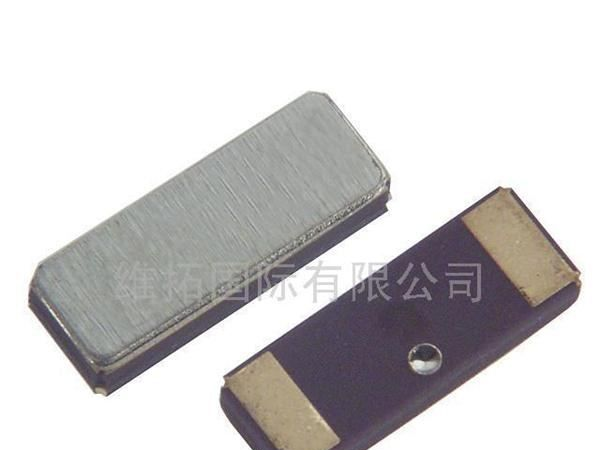

供应石英晶振WX1：3.2*1.5mm SMD
信息内容：Quartz crystal 1.5*3.2mmSMD WX1 Frequency:32.768KHz Frepuency Tolerance(at25°C): /-20ppm ESR:70Kohm Max Turnover Temperature:25 /-5°C Frequency Temperature Curve:-0.034( /-0.006)ppm/°C2 Storage Temperatue Range: -55°C to 125°C Operating Temperature Range: -44°Cto 85°C Shunt Capacitance(Co):1.3pF Typ Dynamic Capacitance(C1):2.4fF Typ Drive Level(Typical):1μW Max Load Capacitance(CL):12.5pF Aging @25°C1 st year(Max): /-3ppm /year

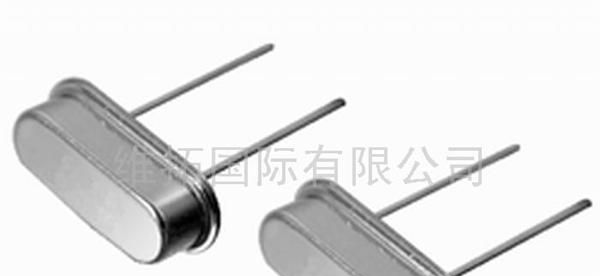

供应石英晶振WX6：HC-49/S
信息内容：Quartz crystal HC-49/S WX6 Frequency Range:3.000MHz to 100.000MHz Load Capacitance(CL):Series, 16pF, 18pF,20pF,30pF,or specify Frepuency Tolerance: /-30ppm at 25 /-2°C(standard) or specity Operating Temperature Range: -10°C— 60°C (standard), -20°C— 70°C,-40°C—85°C,or Specity Frepuency Stability Over Operating Temperature range: /-30ppm(Typical) or specify Storage Temperatue Range: -40°C to 85°C Shunt Capacitance(Co):7pF Max Drive Level(Typical):100μW Typical Insulation resistance:500ΩAT DC100VDC Aging (at25°C ): /-5ppm /year maximum
