供应石英晶振WX6：HC-49/S
| 价 格： | 0.28 | |
| 产品品牌： | 维拓 | |
| 产品型号： | WX6 |
Quartz crystal HC-49/S
WX6
Frequency Range:3.000MHz to 100.000MHz
Load Capacitance(CL):Series, 16pF, 18pF,20pF,30pF,or specify
Frepuency Tolerance: /-30ppm at 25 /-2°C(standard) or specity
Operating Temperature Range: -10°C— 60°C (standard), -20°C— 70°C,-40°C—85°C,or Specity
Frepuency Stability Over Operating Temperature range: /-30ppm(Typical) or specify
Storage Temperatue Range: -40°C to 85°C
Shunt Capacitance(Co):7pF Max
Drive Level(Typical):100μW Typical
Insulation resistance:500ΩAT DC100VDC
Aging (at25°C ): /-5ppm /year maximum
- 所属城市： 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴娟丽
- 电话：86-755-82677582
- 传真：86-755-82679302
- 手机：
- QQ ：

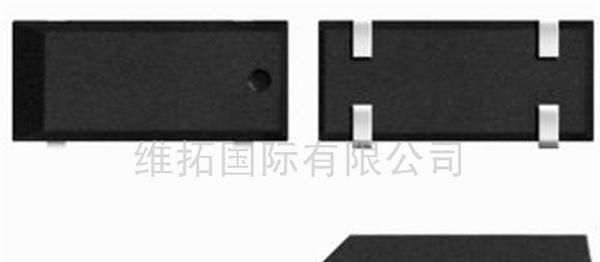

供应石英晶振WX3：3.8*8mm SMD
信息内容：Quartz crystal3.8* 8.0mm SMD WX3 Frequency:30KHz—350KHz Frepuency Tolerance(at25°C): /-5ppm— /-100ppm or specify ESR:30KHz—40KHz:40Kohm Max 40KHz—60KHz:30Kohm Max 60KHz—70KHz:25Kohm Max 70KHz—200KHz:22Kohm Max 200KHz—350KHz:20Kohm Max Turnover Temperature:25 /-5°C Frequency Temperature Curve:-0.034( /-0.006)ppm/°C2 Storage Temperatue Range: -55°C to 125°C Operating Temperature Range: -10°C— 60°C , -20°C— 70°C,-40°C—85°C,or Specity Shunt Capacitance(Co):2.0pF Typ Dynamic Capacitance(C1):4.0fF Typ Drive Level(Typical):1μW Max Load Capacitance(CL):6.0pF—12.5Pf,or specify Aging @25°C1 st year(Max): /-3ppm, /-5ppm /year

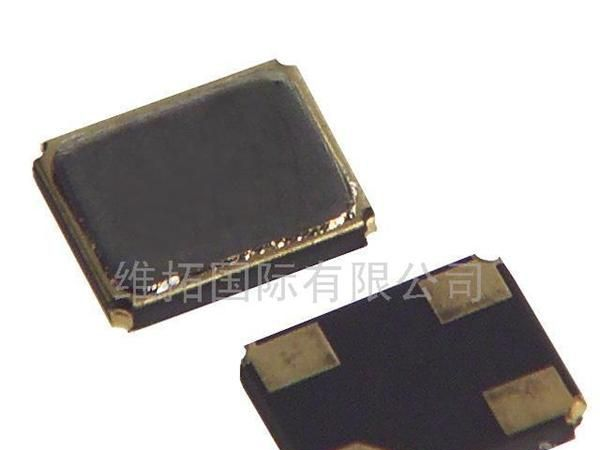

供应石英晶振3.2*2.5mm SMD
信息内容：Quartz crystal 3.2*2.5mm SMD TX3 Frequency Range:12.000MHz to 48.000MHz Load Capacitance(CL):Series, 8pF, 9pF, 12pF, 18pF, 20pFor specify Frepuency Tolerance (at 25°C) : /-10ppm— /-50ppm or specify Operating Temperature Range:-10°C— 60°C(standard),-20°C— 70°C,-40°C—85°C,or Specity Frepuency Stability Over Operating Temperature range: /-10ppm— /-50ppm or specify Storage Temperatue Range: -55°C to 125°C Shunt Capacitance(Co):5.0pF Max Drive Level(Typical):10μW—100μW Aging @25°C1 st year(Max): /-3ppm/year Shock Resistance:Drop test of 3 times on 2mm stainless plate from 75cm height
