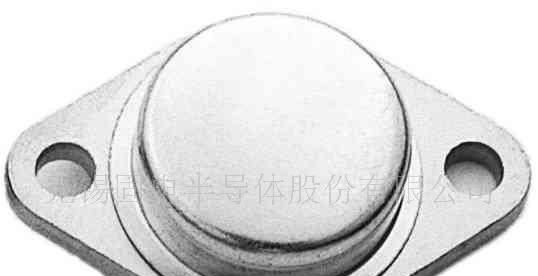

无锡固电ISC 供应2N6476三极管
| 价 格： | 1.80 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | isc | |
| 型号/规格： | 2N6476 | |
| 应用范围： | 功率 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·DC Current Gain-
: hFE= 15-150@IC= -1.5A
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -120V(Min)
·Complement to Type 2N6474
APPLICATIONS
·Designed for general-purpose amplifier and switching
applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -130 | V |
VCER | Collector-Emitter Voltage RBE= 100Ω | -130 | V |
VCEO | Collector-Emitter Voltage | -120 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -4 | A |
IB | Base Current | -2 | A |
PD | Collector Power Dissipation @ TC=25℃ | 40 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -65~150 | ℃ |
THERMAL CHARACTERISTICS
SYMBOL | PARAMETER | MAX | UNIT |
Rth j-c | Thermal Resistance, Junction to Case | 3.125 | ℃/W |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -100mA; IB= 0 | -120 | V | |
VCER | Collector-Emitter Sustaining Voltage | IC= -100mA;RBE= 100Ω | -130 |
| V |
VCE(sat)-1 | Collector-Emitter Saturation Voltage | IC= -1.5A; IB= -0.15A |
| -1.2 | V |
VCE(sat)-2 | Collector-Emitter Saturation Voltage | IC= -4A; IB= -2A |
| -2.5 | V |
VBE(on)-1 | Base-Emitter On Voltage | IC= -1.5A; VCE= -4V |
| -2.0 | V |
VBE(on)-2 | Base-Emitter On Voltage | IC= -4A; VCE= 2.5V |
| -3.5 | V |
ICEV | Collector Cutoff Current | VCE= -120V; VBE(off)= -1.5V VCE= -120V; VBE(off)= -1.5V; TC=100℃ |
| -0.1 -2.0 | mA |
ICER | Collector Cutoff Current | VCE= -130V;RBE= 100Ω VCE= -130V;RBE= 100Ω; TC=100℃ |
| -0.1 -2.0 | mA |
ICEO | Collector Cutoff Current | VCE= -60V; IB= 0 |
| -1.0 | mA |
IEBO | Emitter Cutoff Current | VEB= -5V; IC= 0 |
| -1.0 | mA |
hFE-1 | DC Current Gain | IC= -1.5A; VCE= -4V | 15 | 150 |
|
hFE-2 | DC Current Gain | IC= -4A; VCE= -2.5V | 2 |
|
|
COB | Collector Output Capacitance | IE= 0; VCB= -10V, ftest= 1MHz |
| 250 | pF |
fT | Current-Gain—Bandwidth Product | IC= -0.5A; VCE= -4V | 5 |
| MHz |
