无锡固电ISC 供应音响用大功率晶体管TIP36C(图)
| 价 格： | 3.50 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC/ISCSEMI | |
| 型号/规格： | TIP36C | |
| 应用范围： | 放大 | |
| 材料： | 硅 | |
| 极性： | PNP型 | |
| 集电极允许电流ICM： | -25（A） | |
| 集电极耗散功率PCM： | 125（W） | |
| 截止频率fT： | 3（MHz） | |
| 结构： | 平面型 | |
| 封装形式： | TO-3PN | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·DC Current Gain-
: hFE= 25(Min)@IC= -1.5A
·Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= -100V(Min)
·Complement to Type TIP35C
·Current Gain-Bandwidth Product-
: fT= 3.0MHz(Min)@IC= -1.0A
APPLICATIONS
·Designed for use in general purpose power amplifier and
switching applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -100 | V |
VCEO | Collector-Emitter Voltage | -100 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -25 | A |
ICM | Collector Current-peak | -40 | A |
IB | Base Current | -5 | A |
PC | Collector Power Dissipation@TC=25℃ | 125 | W |
Tj | Junction Temperature | 150 | ℃ |
Tstg | StorageTemperature Range | -65~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | MAX | UNIT |
VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= -30mA ;IB= 0 | -100 |
| V |
VCE(sat)-1 | Collector-Emitter Saturation Voltage | IC= -15A ;IB= -1.5A |
| -1.8 | V |
VCE(sat)-2 | Collector-Emitter Saturation Voltage | IC= -25A; IB= -5A |
| -4.0 | V |
VBE(on)-1 | Base-Emitter On Voltage | IC= -15A ; VCE= -4V |
| -2.0 | V |
VBE(on)-2 | Base-Emitter On Voltage | IC= -25A ; VCE= -4V |
| -4.0 | V |
ICEO | Collector Cutoff Current | VCE= -60V; IB= 0 |
| -1.0 | mA |
ICES | Collector Cutoff Current | VCE= -100V;VEB= 0 |
| -0.7 | mA |
IEBO | Emitter Cutoff Current | VEB= -5V; IC= 0 |
| -1.0 | mA |
hFE-1 | DC Current Gain | IC= -1.5A ; VCE= -4V | 25 |
|
|
hFE-2 | DC Current Gain | IC= -15A ; VCE= -4V | 15 | 75 |
|
fT | Current-Gain—Bandwidth Product | IC= -1A ; VCE= -10V;ftest= 1.0MHz | 3 |
| MHz |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王燕
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：15961889150
- QQ ：

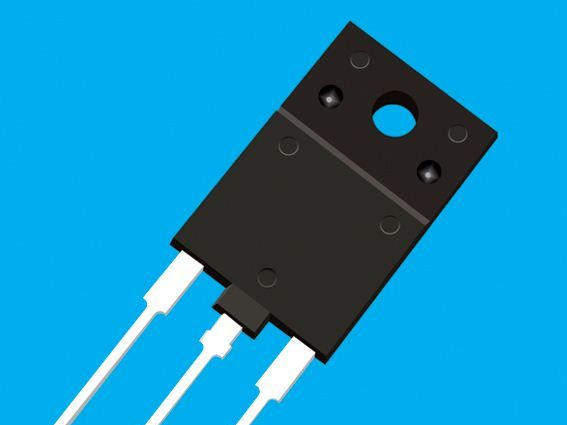

无锡固电ISC供应2SD1545三极管
信息内容：DESCRIPTION ·High Breakdown Voltage-: VCBO= 1500V (Min)·High Switching Speed·Low Saturation Voltage APPLICATIONS·Color TV horizontal output applications·Switching regulator output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage 1500VVCEOCollector-Emitter Voltage 600VVEBOEmitter-Base Voltage 5VICCollector Current- Continuous5AIBBase Current- Continuous2.5APCCollector Power Dissipation@ TC=25℃50WTJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITVCE(sat)Collector-Emitter Saturation VoltageIC= 4.0A; IB= 0.8A 5.0VVBE(sat)Base-Emitter Saturation VoltageIC= 4.0A; IB= 0.8A 1.5VICBOCollector Cutoff CurrentVCB= 500V ; IE= 0 10μAIEBOEmitter Cutoff CurrentVEB= 5V ; IC= 0 1.0mAhFEDC Current GainIC= 1A ...

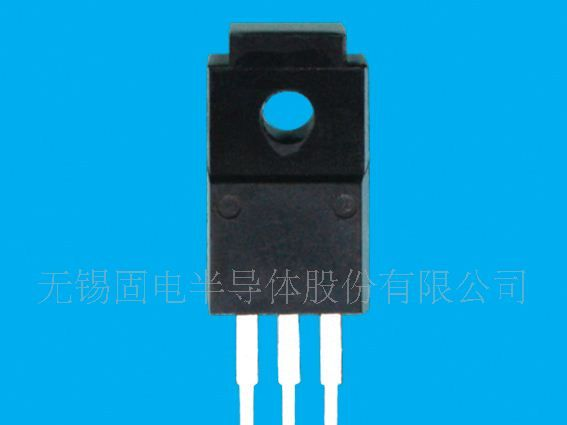

无锡固电ISC供应2SC4981三极管
