2.00mm插头连接器
| 价 格： | 0.10 | |
| 是否提供加工定制： | 否 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | 2.00mm | |
| 应用范围： | 电脑 | |
| 种类： | 插头/插座 | |
| 接口类型： | AC/DC |
2.00mm DIP Plug Connector
Current Rating : 1.5AMP
Operation Temperature :-40°C to 105°C
Contact Resistance :20mΩ Max
Insulation Resistance :1000MΩ Min
Withstanding Voltage :AC 500V
Insulator Material :Polyester(UL94V-0)
Standard:PBT
Contact Material :Brass
Contact plating :Au or Sn Over 50u″ Ni
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王坚波
- 电话：0755-27483253
- 传真：0755-27483253
- 手机：
- QQ ：

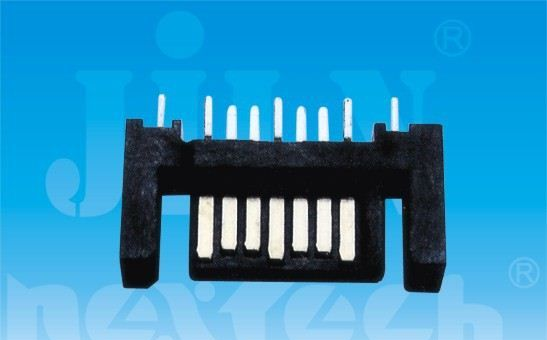

双柱插板式连接器
信息内容：SATA 7P TYPE 双柱插板式 1.MATERIAL: Housig: LCP UL 94V-0 Color: Black Contact: Phosohor bronze Peg: Brass 2.FINISH: Contact: 3u″Gold/Tin plating on contactarea 100u″min.Tin-Lead Plating on soldertails 50u″min.Nickel underplating over all PEG: 100u″min.Tin-Lead Plating on soldertails 50u″min.Nickel underplating over all

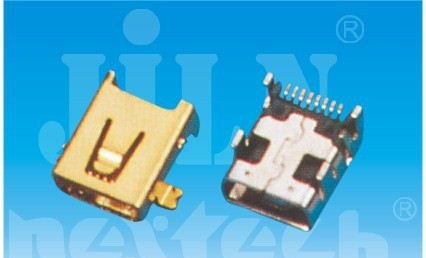

MINI USB 8P/F SMT TYPE
信息内容：SpeceificationsElectrical:Rating:AC 5V/0.5AContact Resistance:100M Ohm Min at DC500VInsulation Resistance:100M Ohm Min at DC 500VDielectric Withstanding Voltage:AC 100V for 1 minute(Cut-off:0.5mA) Mechanical:Insertion Fore:35N(3.57Kgf)MaxWithdrawal Fore: 1N(0.1Kgf)Min Notes:MATERIAL:Contact:Phosphor CopperFront Housing :LCPBack Housing: LCPShell:BRASSPLATING:Shell:NICKELContact:GOLD 10U"/TIN
