供应 AMP280358 PCB连接器
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | Brass | |
| 针数： | 2 ,4, 6, 8,10,12 | |
| 种类： | 线对线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | N（mm） | |
| 应用范围： | PCB | |
| 型号： | SCT2542 | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PBT | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 2 ,4, 6, 8,10,12 | |
| 读卡类型： | MD | |
| 制作工艺： | 冷压 |
1.WIRE TO BOARD CONNECTOR
2.PCB CONNECTOR
3.AMP CONNECTOR
SCT2542 Series (AMP280358-Pitch2.54 Wire to Board Connector )
Specifications :
Current Rating : 3A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~ 85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1500V AC/minute
*Contact SCT2542 for detals*
Housing
Part No:SCT2541H-
Poles:2-12P.
Material:Nylon66 UL94V0
Packing Q'TY:1000pcs/bag
Mates With SCT2542T Series Terminal
Terminal
Part No:SCT2542T
Thickness:0.20mm
Material:Phosphor bronze/ Brass
Finish:Tin Plated
Wire Range:AWG#22-#30
Insulation O.D. : 1.40mm ( Max.)
Q'TY:10,000pcs/reel
Mates With SCT2542H- Series Housing
Wafer (DIP Type)
Part No:SCT2542WV/WR-NP
Poles:2-12P
Material:Nylon66 UL94V-0
Packing Q'TY:1000pcs/box
Mates With SCT2542H- Series Single Row Housing
dzsc/19/0499/19049969.jpg
dzsc/19/0499/19049969.jpg
dzsc/19/0499/19049969.jpg
"
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：

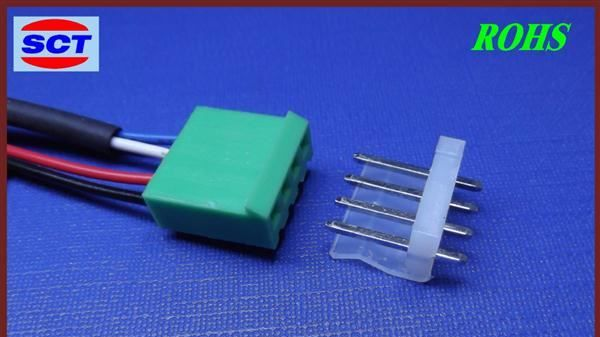

MOLEX3.96 4P 绿色 端子连接线 电脑连接线 电源连接线
信息内容：MOLEX3.96 4P 绿色 端子连接线 电脑连接线 电源连接线Specifications :Current Rating :7A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 1500V AC/minute HousingPart No:SCT3960H/HA-XXPPoles:2-20P.Material:Nylon66 UL94V-2Packing Q'TY:1000pcs/bagMates With SCT3960T Series Terminal TerminalPart No:SCT3960TThickness:0.25mmMaterial:Phosphor BrassFinish:Tin PlatedWire Range:AWG#18-#24Insulation O.D. : 2.80mm ( Max.)Q'TY:5,000pcs/reelMates With SCT3960H- Series Housing WaferPart No:SCT3960WV/WR-XXPPoles:2-20PMaterial:Nylon66 UL94V-2Pin:Brass,Tin PlatedPacking Q'TY:1000pcs/boxMates With SCT3960H- Series Housing Part No:SCT3960WVA/WRA-XXPPoles:2-20PMaterial:Nylon66 UL94V-2Pin:Brass,Tin PlatedPacking Q'TY:1000pcs/boxMates With SCT3960H- Series Housingdzsc/19/0500/19050073.jpgdzsc/19/0500/19050073.jpgdzsc/19/0500/19050073.jpgdzsc/19/0500/19050073.jpgdzsc/19/0500/19050073.jpg

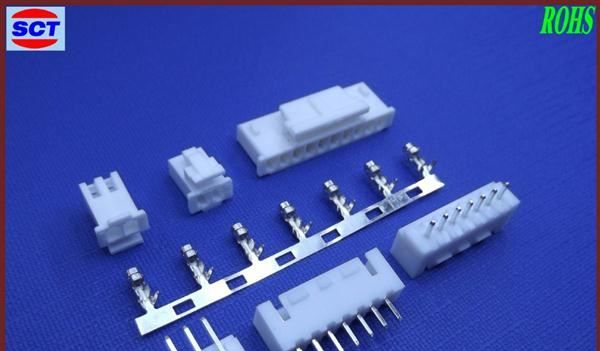

供应 JST XA2.5 带扣 连接器
