供应 JST XA2.5 带扣 连接器
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 2-16P | |
| 种类： | 板对线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | N（mm） | |
| 应用范围： | PCB | |
| 型号： | SCT2502 | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PA46 | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 2-16P | |
| 读卡类型： | CF | |
| 制作工艺： | 注塑 |
SCT2502 Series (JST XH2.5-Pitch2.5 Wire to Board Connector )
Specifications :
Current Rating : 3A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~ 85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1000V AC/minute
*Contact SCT2502 for detals*
Housing
Part No:SCT2502H-
Poles:2-16P.
Material:Nylon66 UL94V0 or UL94V2
Packing Q'TY:1000pcs/bag
Mates With SCT2502T Series Terminal
Terminal
Part No:SCT2502T
Thickness:0.20mm
Material:Phosphor bronze/ Brass
Finish:Tin Plated
Wire Range:AWG#22-#28
Insulation O.D. : 1.40mm ( Max.)
Q'TY:8,000pcs/reel
Mates With SCT2502H- Series Housing
Wafer (DIP Type)
Part No:SCT2502WV/WR-NP
Poles:2-16P
Material:Nylon66 UL94V-0 or UL94V2
Packing Q'TY:1000pcs/box
Mates With SCT2501H- Series Single Row Housing
dzsc/19/0515/19051526.jpg
dzsc/19/0515/19051526.jpg
dzsc/19/0515/19051526.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：

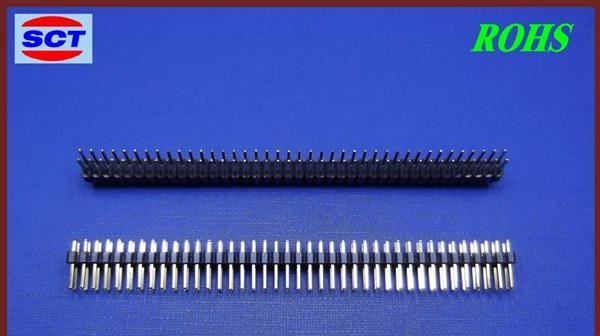

厂家供应2.54 2*40P 双排直排针
信息内容：2.54 mm pin header single row double plastic (PH2.542H2.54-ST-1*NP)SPECIFICATIONS Current rating:3AmpsInsulator resistance:5000 megohms Min.Dielectric withstanding:AC 500 VOperating Temperature: -40~ 105%%dContact material:brss/phosphor bronzeInsulator material:standard P.B.TFinish: gold flash or Tin plated or Duplex platingContact resistance:20M ohm maxPIN : SQ:0.64mm dzsc/19/0516/19051697.jpgdzsc/19/0516/19051697.jpg

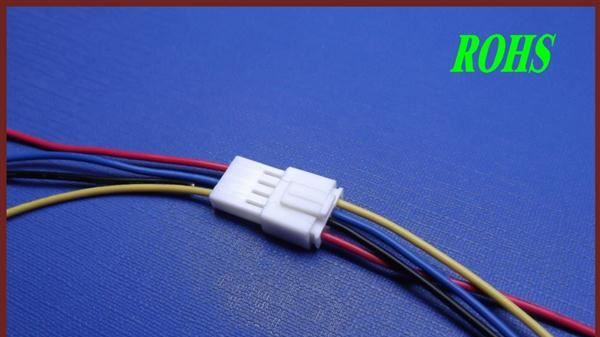

厂家供应 YH SMH250 公端子连接器
