厂家供应 PH1.27 2*10P 双排SMT 贴片排母
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 2*10P | |
| 种类： | 排针/排母/排线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | -（mm） | |
| 应用范围： | PCB | |
| 型号： | PH127H100-SMT-W530-2*10P | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PBT | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 2*10P | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
1.27mm pitch pin header right angle single row (PH1.27HXX-RA-1*NP)
SPECIFICATIONS |
Current rating:1 Amps |
| Insulator resistance:5000 megohms Min. |
| Dielectric withstanding:AC 500 V |
| Operating Temperature: -40~ 105%%d |
| Contact material:brass/phosphor bronze |
| Insulator material:standard Nylon-6T UL 94V-0 |
| Finish: gold flash or Tin plated or Duplex plating |
| Max processing temp:230%?or 30-60 seconds. (260%?or 10 seconds. |
| PIN : SQ0.4mm |
poles: 3-50pins |
dzsc/19/0465/19046520.jpg
dzsc/19/0465/19046520.jpg
dzsc/19/0465/19046520.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：

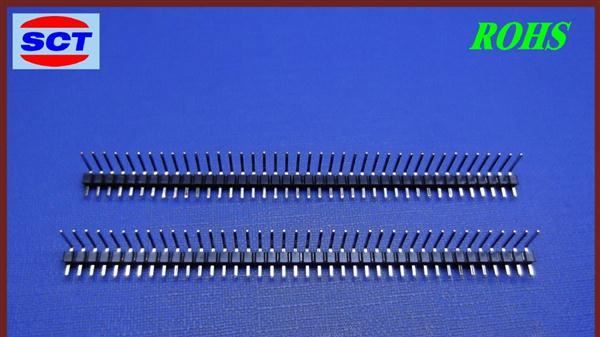

厂家供应2.54 40P 单排弯排针
信息内容：2.54 mm pin header single row double plastic (PH2.542H2.54-ST-1*NP)SPECIFICATIONS Current rating:3AmpsInsulator resistance:5000 megohms Min.Dielectric withstanding:AC 500 VOperating Temperature: -40~ 105%%dContact material:brss/phosphor bronzeInsulator material:standard P.B.TFinish: gold flash or Tin plated or Duplex platingContact resistance:20M ohm maxPIN : SQ:0.64mm dzsc/19/0485/19048560.jpgdzsc/19/0485/19048560.jpg
供应 AMP280358 PCB连接器
信息内容：1.WIRE TO BOARD CONNECTOR2.PCB CONNECTOR3.AMP CONNECTOR SCT2542 Series (AMP280358-Pitch2.54 Wire to Board Connector )Specifications :Current Rating : 3A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 1500V AC/minute*Contact SCT2542 for detals* HousingPart No:SCT2541H- Poles:2-12P.Material:Nylon66 UL94V0 Packing Q'TY:1000pcs/bagMates With SCT2542T Series Terminal TerminalPart No:SCT2542TThickness:0.20mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#22-#30Insulation O.D. : 1.40mm ( Max.)Q'TY:10,000pcs/reelMates With SCT2542H- Series Housing Wafer (DIP Type)Part No:SCT2542WV/WR-NP Poles:2-12PMaterial:Nylon66 UL94V-0 Packing Q'TY:1000pcs/boxMates With SCT2542H- Series Single Row Housingdzsc/19/0499/19049969.jpgdzsc/19/0499/19049969.jpgdzsc/19/0499/19049969.jpg "
