厂家供应 AMP 280358 端子连接器
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 1 | |
| 种类： | 端子(terminal) | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | 客户自定（mm） | |
| 应用范围： | PCB | |
| 型号： | SCT2542-T | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PA66 | |
| 品牌： | SCT | |
| 支持卡数： | 单卡 | |
| 芯数： | 1 | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
AMP 280358 端子连接器
Specifications :
Current Rating : 3A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~ 85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1500V AC/minute
*Contact SCT2542 for detals*
Housing
Part No:SCT2541H-
Poles:2-12P.
Material:Nylon66 UL94V0
Packing Q'TY:1000pcs/bag
Terminal
Part No:SCT2542T
Thickness:0.20mm
Material:Phosphor bronze/ Brass
Finish:Tin Plated
Wire Range:AWG#22-#30
Insulation O.D. : 1.40mm ( Max.)
Q'TY:10,000pcs/reel
Mates With SCT2542H- Series Housing
Wafer (DIP Type)
Part No:SCT2542WV/WR-NP
Poles:2-12P
Material:Nylon66 UL94V-0
Packing Q'TY:1000pcs/box
Mates With SCT2542H- Series Single Row Housing
ates With SCT2542T Series Terminal
dzsc/19/0365/19036582.jpg
dzsc/19/0365/19036582.jpg
dzsc/19/0365/19036582.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：
供应 JST YH2.0 6P 端子线束连接器
信息内容：Detailed Product Description 1.PCB connector2.wire to baord connector SCT2006 Series (YH2.0-Pitch2.0 Wire to Board Connector )Current Rating : 2A AC,DCVoltage Rating : 200V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 800V AC/minute*Contact SCT2006 for detals*" Housingpart No:SCT2006H- poles:2-16P.Material:Nylon66 UL94V0 or UL94V2Packing Q'TY:1000pcs/bagMates With SCT2006T Series Terminal TerminalPart No:SCT2006TThickness:0.20mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#24-#28Insulation O.D. : 1.30mm ( Max.)Q'TY:10,000pcs/reelMates With SCT2006H- Series Housing Wafer (DIP Type)part No:SCT2006WV/WR-NP poles:2-16P.Material:Nylon6T UL94V-0Packing Q'TY:1000pcs/boxMates With SCT2006H- Series Single Row Housingdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzs...

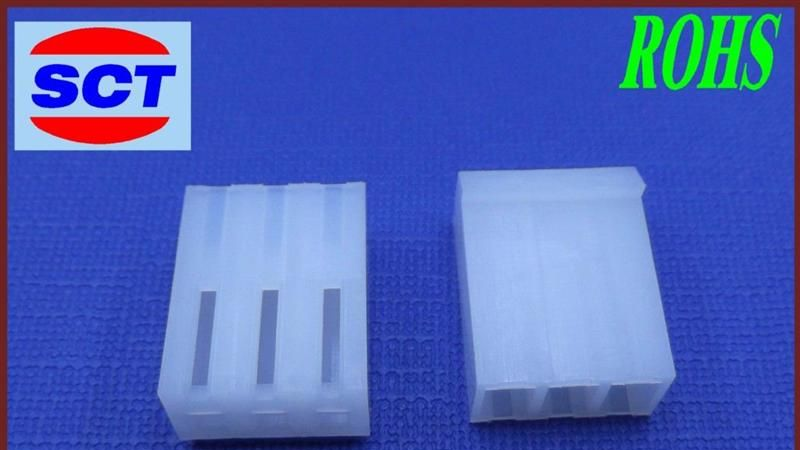

供应 MOLEX 3.96 4P 线束连接器
信息内容：SCT3960 Series (Molex3.96-Pitch3.96 Wire to Board Connector )Specifications :Current Rating :7A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 1500V AC/minute*Contact SCT3960 for detals*HousingPart No:SCT3960H- Poles:2-16P.Material:Nylon66 UL94V2 Packing Q'TY:1000pcs/bagMates With SCT3960T Series TerminalTerminalPart No:SCT3960TThickness:0.25mmMaterial:Phosphor BrassFinish:Tin PlatedWire Range:AWG#20-#28Insulation O.D. : 1.60mm ( Max.)Q'TY:5,000pcs/reelMates With SCT3960H- Series HousingWafer (DIP Type)Part No:SCT3960WV/WR-NP Poles:2-16PMaterial:Nylon66 UL94V2Packing Q'TY:1000pcs/boxMates With SCT3960H- Series Single Row Housingdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/19/0365/19036588.jpgdzsc/1...
