供应 MOLEX 3.96 4P 线束连接器
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 4P | |
| 种类： | 线束/连接线/端子线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | N（mm） | |
| 应用范围： | PCB | |
| 型号： | SCT3960H04harness | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PA46 | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 4P | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
SCT3960 Series (Molex3.96-Pitch3.96 Wire to Board Connector )
Specifications :
Current Rating :7A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~ 85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1500V AC/minute
*Contact SCT3960 for detals*
Housing
Part No:SCT3960H-
Poles:2-16P.
Material:Nylon66 UL94V2
Packing Q'TY:1000pcs/bag
Mates With SCT3960T Series Terminal
Terminal
Part No:SCT3960T
Thickness:0.25mm
Material:Phosphor Brass
Finish:Tin Plated
Wire Range:AWG#20-#28
Insulation O.D. : 1.60mm ( Max.)
Q'TY:5,000pcs/reel
Mates With SCT3960H- Series Housing
Wafer (DIP Type)
Part No:SCT3960WV/WR-NP
Poles:2-16P
Material:Nylon66 UL94V2
Packing Q'TY:1000pcs/box
Mates With SCT3960H- Series Single Row Housing
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
dzsc/19/0365/19036588.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：

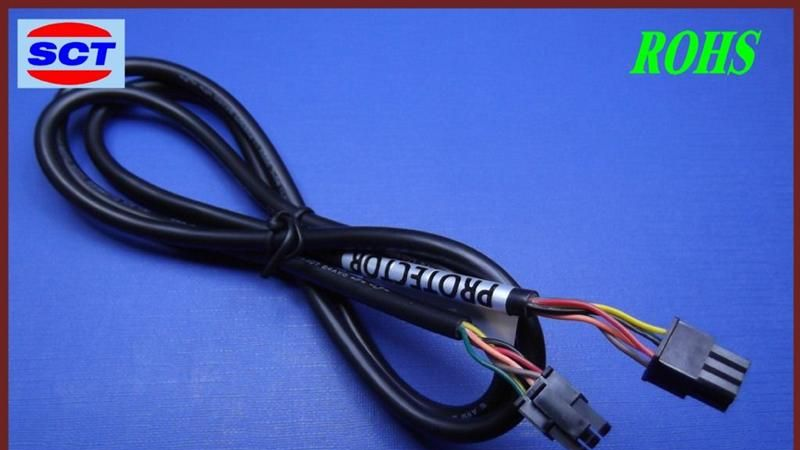

供应 MOLEX 3.0 2*3P 线束连接器
信息内容：SCT3001 Series (Molex43020/43025-Pitch3.0 Wire to Board Connector )Specifications :Current Rating : 5A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25deg C ~ 85 deg CContact Resistance : 10m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage :1500V AC/minute*Contact SCT3001 for detals*HousingPart No:SCT3001MH/FH- Poles:2*1-2*12P.Material:Nylon66 UL94V2 Packing Q'TY:1000pcs/bagMates With SCT3001FT/MT Series TerminalTerminalPart No:SCT3001FT/MTThickness:0.20mmMaterial:Phosphor bronzeFinish:Tin PlatedWire Range:AWG#22-#28Insulation O.D. : 1.3mm ( Max.)Q'TY:10,000pcs/reelMates With SCT3001MH/FH- Series Daul row Housingdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpgdzsc/19/0365/19036597.jpg"

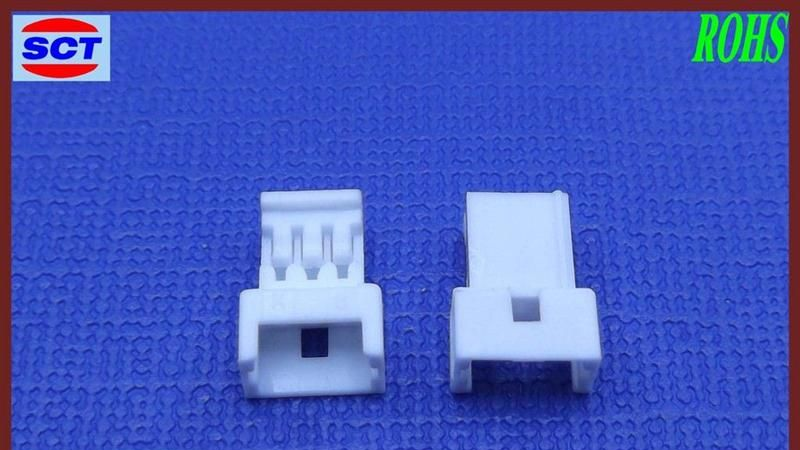

供应 Molex 51021 3P 母胶壳 线对线 连接器
信息内容：SCT1251 Series ( Mx51021 Wire to Board Connector )"Specifications :Current Rating : 1A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -40 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 100M Omega Min.Withstanding Voltage : 500V AC/minute*Contact SCT for detals*"Housingpart No:SCT1251H-poles:2-16PMaterial:Nylon66 UL94V-0Packing Q'TY:1000pcs/bagMates With SCT1001WV- Series Single Row WaferTerminalPart No:SCT1251-TThickness:0.15mmMaterial:Phosphor bronzeFinish:Tin PlatedWire Range:AWG#28-#32Insulation O.D. : 0.8mmQ'TY:15,000pcs/reelMates With SCT1251H- Series HousingWafer (DIP and SMT Type)part No:SCT1251WV/WR-1*NP or SCT1251WV/WR-S-1*NPpoles:2-16PMaterial:Nylon46/6T UL94V-0Packing Q'TY:1000pcs/boxMates With SCT1251H- Series Single Row Housingdzsc/19/0366/19036616.jpgdzsc/19/0366/19036616.jpgdzsc/19/0366/19036616.jpg
