价 格: | 1.00 | |
接口类型: | AC/DC | |
接触件材质: | 铜 | |
针数: | 2 | |
种类: | 胶壳(housing) | |
加工定制: | 是 | |
形状: | 条形 | |
线长: | 客户自定(mm) | |
应用范围: | 汽车 | |
型号: | SCT63080FH-02P | |
工作频率: | 高频 | |
特性: | 阻火/阻燃 | |
绝缘体材质: | 胶料 | |
品牌: | SCT | |
支持卡数: | 单卡 | |
芯数: | 2 | |
读卡类型: | CF | |
制作工艺: | 注塑 |
AMP 63080 6.35MM线对线连接器 6.35MM 2P 母胶壳
Current Rating: 1A AC, DC
Voltage Rating: 500V AC, DC
Temperature Range: -25 deg C ~ 85 deg C
Contact Resistance: 10m Omega Max.
Insulation Resistance: 1,000M Omega Min.
Withstanding Voltage: 1,000V AC/minute
Contact SCT63080 for details.
Housing
Part No:SCT630800MH/FH-
Poles:02-09P.
Material:Nylon66 UL94V2
Packing Q'TY:1000pcs/bag
Mates With SCT63080FT/MT Series Terminal
dzsc/19/0365/19036580.jpg
dzsc/19/0365/19036580.jpg
dzsc/19/0365/19036580.jpg
dzsc/19/0365/19036580.jpg

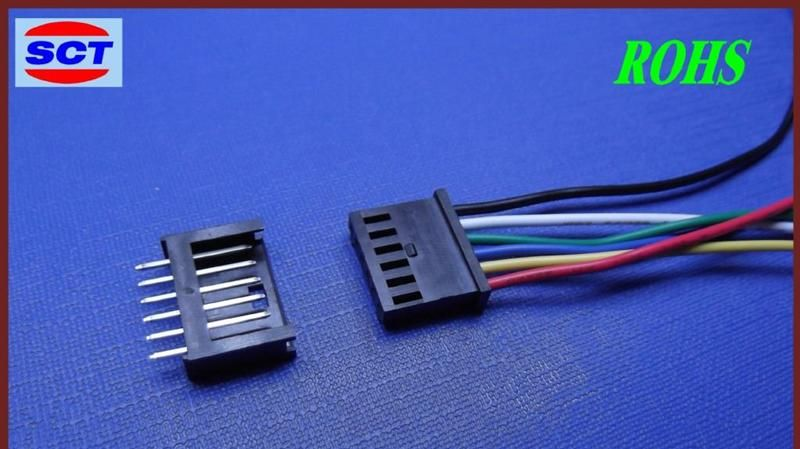

AMP 280358 端子连接器 Specifications :Current Rating : 3A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 1500V AC/minute*Contact SCT2542 for detals* HousingPart No:SCT2541H- Poles:2-12P.Material:Nylon66 UL94V0 Packing Q'TY:1000pcs/bag TerminalPart No:SCT2542TThickness:0.20mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#22-#30Insulation O.D. : 1.40mm ( Max.)Q'TY:10,000pcs/reelMates With SCT2542H- Series Housing Wafer (DIP Type)Part No:SCT2542WV/WR-NP Poles:2-12PMaterial:Nylon66 UL94V-0 Packing Q'TY:1000pcs/boxMates With SCT2542H- Series Single Row Housing ates With SCT2542T Series Terminaldzsc/19/0365/19036582.jpgdzsc/19/0365/19036582.jpgdzsc/19/0365/19036582.jpg
Detailed Product Description 1.PCB connector2.wire to baord connector SCT2006 Series (YH2.0-Pitch2.0 Wire to Board Connector )Current Rating : 2A AC,DCVoltage Rating : 200V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 800V AC/minute*Contact SCT2006 for detals*" Housingpart No:SCT2006H- poles:2-16P.Material:Nylon66 UL94V0 or UL94V2Packing Q'TY:1000pcs/bagMates With SCT2006T Series Terminal TerminalPart No:SCT2006TThickness:0.20mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#24-#28Insulation O.D. : 1.30mm ( Max.)Q'TY:10,000pcs/reelMates With SCT2006H- Series Housing Wafer (DIP Type)part No:SCT2006WV/WR-NP poles:2-16P.Material:Nylon6T UL94V-0Packing Q'TY:1000pcs/boxMates With SCT2006H- Series Single Row Housingdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzsc/19/0365/19036585.jpgdzs...
