红色激光二极管 UH5-10G-635 diode modules
| 价 格： | 1.00 | |
| 加工定制： | 是 | |
| 产品类型： | 激光管 | |
| 是否进口： | 是 | |
| 品牌/商标： | 定制 | |
| 型号/规格： | UH5-10G-635 | |
| 主要参数： | 635 nm 10 mW | |
| 用途： | 控制电路 汽车功率控制 电气连接 |
UH Series Red Laser Diode Module
Part No: UH5-10G-635
Product Features
• • • • • • • •
Specification
OPTICAL
Wavelength
635 nm
Optical Output Power
10 mW
Stability
<1%
Wavelength Drift
0.2nm/°C
Noise (20MHz Bandwidth)
<0.5% RMS
Laser Class
Class IIIb
Laser Operation
Continuous
Laser Structure
Single Mode Laser
Divergence at the collimation
<0.5 milliradian
Spot Size
Adjustable
Or Collimated(5mm)
Minimum Spot Size
<60μm at <10” distance
Bore sight Accuracy
<2.5mm/m
Pointing Stability
<50μrad
ELECTRICAL
Operating Voltage1
3 to 5 VDC
Operating Current
<120 mA
Control Circuit
Auto Power Control
Electrical Connections Red, -Black
MECHANICAL
Dimension
12mm(D)x 51mm (L)
Cable
200mm
Operating Temperature
-10ºC to 50°C
Storage Temperature
-40ºC to 80°C
Heat Sink Requirements2
Recommended for extended use
Notes
1. Higher operating voltage version (9 to12V) is available, the part No. will be: UH12-10G-635.
2. Heat Sink: The UH Series Red Laser Diode Module is designed to dissipate heat through its body. Do not use a thermally insulating material for mounting. Do not restrict air circulation around the device. An additional heat sink can be used to maximize the performance and life time of the laser.
.
Caution: The case is internally connected to the circuit; damaging to the anodized surface may result in failure of the laser module.
LASER LIGHTAvoid Direct Eye ExposureWavelength: 400-690nmPeak Power: 5 to100 mW Class IIIb Laser Product
High Stability and low noise
Collimated or Adjustable focus beam
Reverse Polarity Protection
Custom Options Available
Application
Measurement
Bioanalytical
Automation
Alignment
Mechanical Drawing
Operational Hazard-Semiconductor Laser Diode Module: This laser module emits radiation that is visible and harmful to human eye. When in use, do not look directly into the laser emitting aperture. Direct viewing of laser diode emission at close range may cause eye damage.
Limited Warranty: One year. No warranty coverage for disassembly, modifications or damage due to abuse or misapplication.
World Star Tech. Rev. B Oct.2004
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
dzsc/18/9999/18999921.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 毕小妮
- 电话：0755-26985163
- 传真：0755-26985163
- 手机：
- QQ ：
TURCK 磁性传感器BIM-PST-AP6X
信息内容：100919006品牌：TURCK型号：BIM-PST-AP6X名称：磁性传感器产品介绍：10-30V DC，200MA。三线直流，磁感应式，塑料外壳，外型PST长方形，高16毫米活跃的前表面塑料，再将PA12 - GF30磁感应传感器直流3线，10 .. 30伏直流，PNP输出有线关于速度≤10米/秒 ≥± 0.1毫米重复性 温度漂移≤0.1毫米 迟滞≤1毫米 环境温度-25 ° C... 70℃工作电压10.0伏直流... 30.0 纹波≤10％号 直流工作电流≤200毫安 空载电流I0≤15毫安 漏电流≤0.1毫安 额定电压≤0.5千伏绝缘 短路保护是/循环 在IE浏览器的电压降≤1.8伏 断线/反向极性保护是/完成 输出三线，即插即用 ≤1 kHz的开关频率长方形，秒 尺寸23.0毫米× 14.0毫米x十六点〇毫米 外壳材料塑料，再将PA12 - GF30 活动区域的塑料材质，再将PA12 - GF30 电气连接电缆 Ø 4.0电缆的质量，灰色，LifYY，聚氯乙烯，2.0米 电缆截面3 ×0.25平方毫米 耐振动55赫兹（1毫米） 耐冲击性30克（11毫秒） 保护等级IP67 dzsc/19/0219/19021973.jpg"

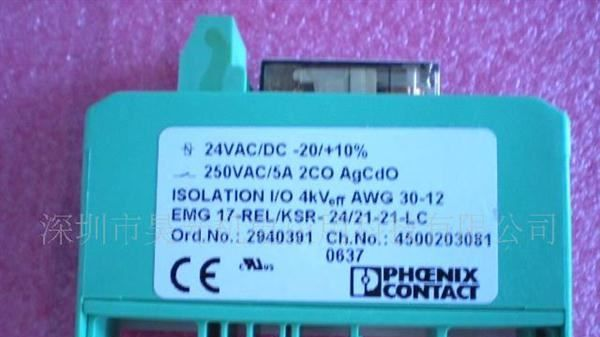

Phoenix 微型电磁式继电器2940391
