厂家供应 FH1.27 2*24P SMT 贴片排母
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 2*24 | |
| 种类： | 排针/排母/排线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | -（mm） | |
| 应用范围： | PCB | |
| 型号： | FH127H350-SMT-W450-2*24P | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PBT | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 2*24 | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
1.27mm pitch pin header right angle single row (PH1.27HXX-RA-1*NP)
SPECIFICATIONS |
Current rating:1 Amps |
| Insulator resistance:5000 megohms Min. |
| Dielectric withstanding:AC 500 V |
| Operating Temperature: -40~ 105%%d |
| Contact material:brass/phosphor bronze |
| Insulator material:standard Nylon-6T UL 94V-0 |
| Finish: gold flash or Tin plated or Duplex plating |
| Max processing temp:230%?or 30-60 seconds. (260%?or 10 seconds. |
| PIN : SQ0.4mm |
poles: 3-50pins |
dzsc/18/9914/18991450.jpg
dzsc/18/9914/18991450.jpg
dzsc/18/9914/18991450.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：
Molex51021 端子连接线束 精密线束 LED连接线束
信息内容：Specifications :Current Rating : 1A AC,DCVoltage Rating : 150V AC,DCTemperatureRange: -40 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 100M Omega Min.Withstanding Voltage : 500V AC/minute Female&Male HousingPart No:SCT1251FH/MH-XXPPoles:2-16PMaterial:Nylon66 UL94V-0Packing Q'TY:1000pcs/bagMates With SCT1251FT- Series Teminal Male&FemaleTerminalPart No:SCT1251MT/FTThickness:0.15mmMaterial:Phosphor bronzeFinish:Tin PlatedWireRange:AWG#28-#32Insulation O.D. : 1.0mmQ'TY:15,000pcs/reelMates With SCT1251MH- Series Housing WaferPart No:SCT1251WV/WR- XXPPoles:2-16PMaterial:Nylon46 UL94V-0Contact:Bass Tin PlatedPacking Q'TY:1000pcs/boxMates With SCT1251MH- Series Housing Part No:SCT1251WV/WR- S-XXPPoles:2-16PMaterial:Nylon9T UL94V-0Contact:Bass Tin PlatedPacking Q'TY:1000pcs/boxMates With SCT1251MH- Series Housing dzsc/18/9951/18995150.jpgdzsc/18/9951/18995150.jpgdzsc/18/9951/18995150.jpgdzsc/18/9951/18995150.jpgdzsc/18/9951/18995150.jpgdzsc/18/9951/189...

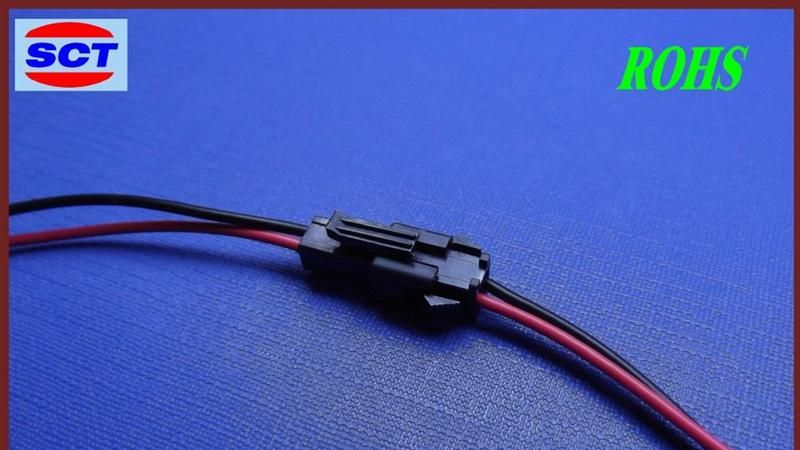

厂家供应 JST SM2.5 公端子连接器
信息内容：JST SM2.5 公端子连接器 Specifications :Current Rating : 3A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.nsulation Resistance : 1000M Omega Min.Withstanding Voltage : 1000V AC/minute*Contact SCT2501 for detals*HousingPart No:SCT2505FH-/MH- Poles:2-12P.Material:Nylon66 UL94V0 or UL94V2Packing Q'TY:1000pcs/bagMates With SCT2505MT/FT Series Terminal TerminalPart No:SCT2505MT/FTThickness:0.20mm/0.25mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#24-#28Insulation O.D. : 1.20mm ( Max.)Q'TY:MT:9,000pcs/reel,FT:5,000pcs/reelMates With SCT2505FH/MH- Series Housing dzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpg
