Molex51021 端子连接线束 精密线束 LED连接线束
| 价 格： | 2.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | 铜 | |
| 针数： | 24 | |
| 种类： | 线束/连接线/端子线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | 客户自定（mm） | |
| 应用范围： | 显示屏 | |
| 型号： | SCT1251H12H02LNN | |
| 工作频率： | 高频 | |
| 特性： | 阻火/阻燃 | |
| 绝缘体材质： | 胶料 | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 24 | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
Specifications :
Current Rating : 1A AC,DC
Voltage Rating : 150V AC,DC
TemperatureRange: -40 deg C ~ 85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 100M Omega Min.
Withstanding Voltage : 500V AC/minute
Female&Male Housing
Part No:SCT1251FH/MH-XXP
Poles:2-16P
Material:Nylon66 UL94V-0
Packing Q'TY:1000pcs/bag
Mates With SCT1251FT- Series Teminal
Male&FemaleTerminal
Part No:SCT1251MT/FT
Thickness:0.15mm
Material:Phosphor bronze
Finish:Tin Plated
WireRange:AWG#28-#32
Insulation O.D. : 1.0mm
Q'TY:15,000pcs/reel
Mates With SCT1251MH- Series Housing
Wafer
Part No:SCT1251WV/WR- XXP
Poles:2-16P
Material:Nylon46 UL94V-0
Contact:Bass Tin Plated
Packing Q'TY:1000pcs/box
Mates With SCT1251MH- Series Housing
Part No:SCT1251WV/WR- S-XXP
Poles:2-16P
Material:Nylon9T UL94V-0
Contact:Bass Tin Plated
Packing Q'TY:1000pcs/box
Mates With SCT1251MH- Series Housing
dzsc/18/9951/18995150.jpg
dzsc/18/9951/18995150.jpg
dzsc/18/9951/18995150.jpg
dzsc/18/9951/18995150.jpg
dzsc/18/9951/18995150.jpg
dzsc/18/9951/18995150.jpg
dzsc/18/9951/18995150.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：
厂家供应 JST SM2.5 公端子连接器
信息内容：JST SM2.5 公端子连接器 Specifications :Current Rating : 3A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.nsulation Resistance : 1000M Omega Min.Withstanding Voltage : 1000V AC/minute*Contact SCT2501 for detals*HousingPart No:SCT2505FH-/MH- Poles:2-12P.Material:Nylon66 UL94V0 or UL94V2Packing Q'TY:1000pcs/bagMates With SCT2505MT/FT Series Terminal TerminalPart No:SCT2505MT/FTThickness:0.20mm/0.25mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#24-#28Insulation O.D. : 1.20mm ( Max.)Q'TY:MT:9,000pcs/reel,FT:5,000pcs/reelMates With SCT2505FH/MH- Series Housing dzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpgdzsc/19/0069/19006955.jpg

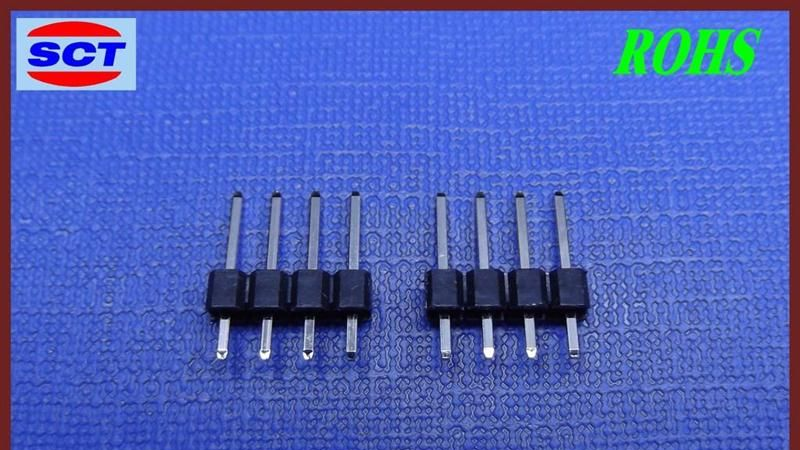

供应2.54mm 4P 单塑单排直针连接器
