信音防水电缆组件，IP67，航空接插件
| 价 格： | 面议 | |
| 品牌/商标： | Singatron信音 | |
| 型号/规格： | 2CG3004-W12F01 | |
| 应用范围： | 电池 | |
| 种类： | 板对线 | |
| 接口类型： | AC/DC | |
| 形状： | 圆形 | |
| 制作工艺： | 注塑 | |
| 特性： | 防水 | |
| 接触件材质： | 铜合金 | |
| 绝缘体材质： | 塑胶 | |
| 芯数： | 9+3 | |
| 针数： | 9+3 | |
| 线长： | 可定制（mm） |
Singatron waterproof circular cable assembly are available in IP66, 67 and 68 ratings for use in almost any environment.
- In the design phase,Singatronwaterproof electrical connectors undergo significant R&D and quality control testing including flammability, salt water, UV, vibration & drop testing, torque and mechanical bending forces
- The result is durable, long life waterproof power connectors of comparable or higher quality than some of the worlds biggest names in harsh environment connectors
- Singatronproducts are compatible with the existing marketplace
- Singatronrange in stock include multipin circular DIN, D-Sub and RJ45, USD, M seriesin both line and chassis types
- Most chassis connectors have a matching screw or locking cap to ensure moisture and dust does not damage equipment when leads are not connected
dzsc/18/9749/18974940.jpg
dzsc/18/9749/18974940.jpg
dzsc/18/9749/18974940.jpg
- 所属城市：江苏 苏州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 於勍
- 电话：
- 传真：
- 手机：
- QQ ：
信音RF射频连接器 F系列
信息内容：Singatron range in stock include BNC、MCX、MMCX、TYPE F、TNC、SMA、SMB for both RF cable and PCB Insert Mount. Singatron products are compatible with the existing marketplace. The Type F is threaded rather than snap-on. Primary applications are for cable television(CATV),set top boxes, and cable modems. Type F is use in the American rule NTSC system.Use example TV/DV/DVD... Singatron F-Type Specification：Impedance：75ΩFrequency Range：0~1GHZWorking Voltage: ≤500 VrmsDielectric Withstanding Voltage: 1500 VrmsContact Resistance: Center Contact: ≤ 5mΩ Outer Contacrt: ≤ 2mΩInsulation Resistance: ≥ 5000 MΩVSWR: 1.5(Max)Durability: ≥100 CyclesTo conform to the EU RoHS dzsc/18/9837/18983767.jpg应用： 通讯设备：航太、军用、车用、医疗仪器、监控设备、工业电脑、通讯基地台、DV、DVD、视讯盒、音响设备。"

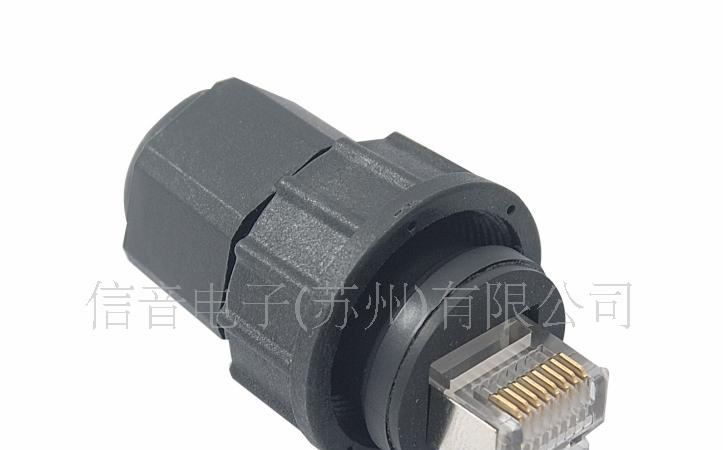

防水RJ45系列连接头
信息内容：Singatron RJ45connectors are available in IP66, 67 and 68 ratings for use in almost any environment.In the design phase,Singatronwaterproof electrical connectors undergo significant R&D and quality control testing including flammability, salt water, UV, vibration & drop testing, torque and mechanical bending forcesThe result is durable, long life waterproof power connectors of comparable or higher quality than some of the worlds biggest names in harsh environment connectorsSingatronproducts are compatible with the existing marketplaceSingatronrange in stock include multipin circular DIN, D-Sub and RJ45, USD, M seriesin both line and chassis typesMost chassis connectors have a matching screw or locking cap to ensure moisture and dust does not damage equipment when leads are not connectedAssembly type, plug with shielded plugCurrent Rating: Cat.5E, IP67dzsc/18/9868/18986867.jpg
