信音RF射频连接器 F系列

价 格: 面议
品牌/商标:Singatron信音
型号/规格:F Type
应用范围:通讯
种类:射频同轴(RF)
接口类型:F Type
形状:圆形
接触件材质:
绝缘体材质:Teflon
芯数:1
针数:1
线长:可定制(mm)

Singatron range in stock include BNC、MCX、MMCX、TYPE F、TNC、SMA、SMB for both RF cable and PCB Insert Mount.



Singatron products are compatible with the existing marketplace.



The Type F is threaded rather than snap-on. Primary applications are for cable television(CATV),set top boxes, and cable modems. Type F is use in the American rule NTSC system.

Use example TV/DV/DVD...



Singatron F-Type Specification:

Impedance:75Ω

Frequency Range:0~1GHZ

Working Voltage: ≤500 Vrms

Dielectric Withstanding Voltage: 1500 Vrms

Contact Resistance:

  Center Contact: ≤ 5mΩ
  Outer Contacrt: ≤ 2mΩ

Insulation Resistance: ≥ 5000 MΩ

VSWR: 1.5(Max)

Durability: ≥100 Cycles

To conform to the EU RoHS



dzsc/18/9837/18983767.jpg

应用:

   通讯设备:航太、军用、车用、医疗仪器、监控设备、工业电脑、通讯基地台、DV、DVD、视讯盒、音响设备。

"

信音电子(中国)股份有限公司
公司信息未核实
  • 所属城市:江苏 苏州
  • [联系时请说明来自维库仪器仪表网]
  • 联系人: 於勍
  • 电话:
  • 传真:
  • 手机:
  • QQ :
公司相关产品

防水RJ45系列连接头

信息内容:

Singatron RJ45connectors are available in IP66, 67 and 68 ratings for use in almost any environment.In the design phase,Singatronwaterproof electrical connectors undergo significant R&D and quality control testing including flammability, salt water, UV, vibration & drop testing, torque and mechanical bending forcesThe result is durable, long life waterproof power connectors of comparable or higher quality than some of the worlds biggest names in harsh environment connectorsSingatronproducts are compatible with the existing marketplaceSingatronrange in stock include multipin circular DIN, D-Sub and RJ45, USD, M seriesin both line and chassis typesMost chassis connectors have a matching screw or locking cap to ensure moisture and dust does not damage equipment when leads are not connectedAssembly type, plug with shielded plugCurrent Rating: Cat.5E, IP67dzsc/18/9868/18986867.jpg

详细内容>>

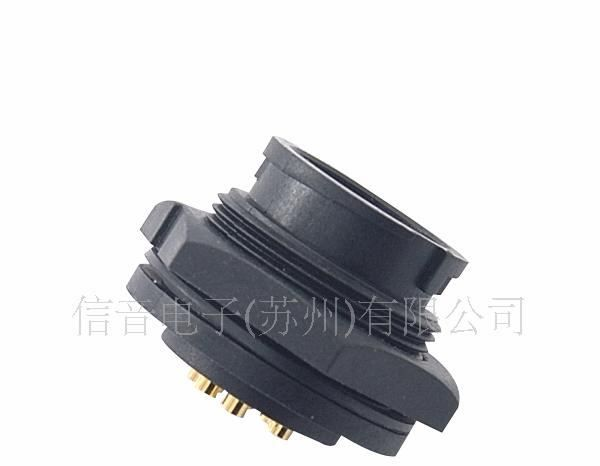

防水连接器Circular Middle Size
