信音RF射频连接器 BNC Jack 50Ω
| 价 格： | 面议 | |
| 品牌/商标： | Singatron信音 | |
| 型号/规格： | BNC Series | |
| 应用范围： | 通讯 | |
| 种类： | 射频同轴(RF) | |
| 接口类型： | BNC | |
| 形状： | 圆形 | |
| 制作工艺： | 压铸、注塑 | |
| 工作频率： | 高频 | |
| 接触件材质： | 锌合金、铜 | |
| 绝缘体材质： | Delrin | |
| 针数： | 2 |
Singatron range in stock include BNC、MCX、MMCX、TYPE F、TNC、SMA、SMB for both RF cable and PCB Insert Mount.
Singatron products are compatible with the existing marketplace.
Part No. : 2RF3005-000300
产品规格参数如下：
1. Material of Components:
1-1. Copper-Body: ZINC Diecast Nickel
1-2. Insulator: Delrin-500p Natural
1-3. Center Contact: Phosphor Bronze. Gold
1-4. Shell: Spcc Nickel
2. Electrical Characteristics:
2-1.Impedance: 50Ω
2-2. VSWR: 1.3 MAX
2-3. Frequency Range: 0~1GHZ
2-4. Dielectric Withstanding Voltage: 1500 Vrms,MIN
3. Environmental Characteristics:
2-1. Temperature Range: -40~ 85 ℃
4. Life Test: 500 Cycles MIN
5. To conform to the EU RoHS Directive。
6. Packing By PET TRAY.
产品细节图如下：
dzsc/18/9617/18961713.jpg
dzsc/18/9617/18961713.jpg
dzsc/18/9617/18961713.jpg
与该BNC Jack匹配的Plug端如下：
dzsc/18/9617/18961713.jpg
P.C.B Layout 如下:
dzsc/18/9617/18961713.jpg
应用：
广泛应用于安防监控行业，如硬盘录像机(DVR)等。
- 所属城市：江苏 苏州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 於勍
- 电话：
- 传真：
- 手机：
- QQ ：
信音RF射频连接器 SMA系列
信息内容：Singatron range in stock include BNC、MCX、MMCX、TYPE F、TNC、SMA、SMB for both RF cable and PCB Insert Mount. Singatron products are compatible with the existing marketplace. Series SMA are developed as a minimal connector interface for coaxial cable with a screw type coupling mechanism. They are very popular thread coupling miniature coaxial connectors which have the excellent performances of high reliability,high mechanical strengh,high durability,and optimum electrical properties and widely used to connect RF circuits for mobile communication equipments and electronic communication instruments. Singatron MCX Series Specification：Impedance：50ΩFrequency Range：0~18GHZWorking Voltage：≤335 VrmsDielectric Withstanding Voltage: 1000VrmsContact Resistance: Center Contact: ≤ 5mΩ Outer Contacrt: ≤ 2.5mΩInsulation Resistance: ≤ 5000MΩVSWR: Straight ≤1.2 Right Angle ≤1.3Durability: ≥500 CyclesTo conform to the EU RoHS dzsc/18/9683/1896...
信音防水电缆组件，IP67，航空接插件

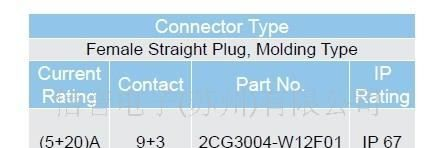

信息内容：Singatron waterproof circular cable assembly are available in IP66, 67 and 68 ratings for use in almost any environment.In the design phase,Singatronwaterproof electrical connectors undergo significant R&D and quality control testing including flammability, salt water, UV, vibration & drop testing, torque and mechanical bending forcesThe result is durable, long life waterproof power connectors of comparable or higher quality than some of the worlds biggest names in harsh environment connectorsSingatronproducts are compatible with the existing marketplaceSingatronrange in stock include multipin circular DIN, D-Sub and RJ45, USD, M seriesin both line and chassis typesMost chassis connectors have a matching screw or locking cap to ensure moisture and dust does not damage equipment when leads are not connecteddzsc/18/9749/18974940.jpgdzsc/18/9749/18974940.jpgdzsc/18/9749/18974940.jpg"
