供应 1.2英寸 Φ3.0 8*8点阵
| 价 格： | 7.00 | |
| 是否提供加工定制： | 是 | |
| 种类： | LED点阵 | |
| 型号/规格： | BL-M12A881 | |
| 品牌/商标： | BETLUX | |
| 显示颜色： | 全彩 | |
| 显示方式： | 静态显示 | |
| 像素直径： | Ф3（mm） | |
| 像素间距： | 标准（mm） | |
| 模组尺寸： | 标准（mm） | |
| 屏幕尺寸： | 标准（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 安装方式： | 镶嵌式 |
特点:
39.10mm(1.2)Φ3.0LED点阵
低电流操作
优良的品质外观
容易安装在PC板和PC槽上
智能卡兼容
符合ROHS
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | ||||
Typ | Max | |||||||
BL-M12A881SG-XX | BL-M12B881SG-XX | Super Red | AlGaInP | 660 | 2.10 | 2.50 | 200 | |
Green | GaP/GaP | 570 | 2.20 | 2.50 | 195 | |||
BL-M12A881EG-XX | BL-M12B881EG-XX | Orange | GaAsP/GaP | 635 | 2.10 | 2.50 | 190 |
|
Green | GaP/GaP | 570 | 2.20 | 2.50 | 195 | |||
BL-M12A881DUG-XX | BL-M12B881DUG-XX | Ultra Red | AlGaInP | 660 | 2.10 | 2.50 | 320 | |
Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 250 | |||
BL-M12A881UEUG-XX | BL-M12B881UEUG-XX | Ultra Orange | AlGaInP | 630 | 2.10 | 2.50 | 235 | |
Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 250 |
| ||
n -XX: Surface / Lens color：
Number | 0 | 1 | 2 | 3 | 4 | 5 |
Ref Surface Color | White | Black | Gray | Red | Green |
|
Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
|
n Absolute maximum ratings (Ta=25°C)
Parameter | S | G | E | D | UG | UE |
|
| Unit |
Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 |
|
| mA |
Power Dissipation Pd | 75 | 80 | 80 | 75 | 75 | 65 |
|
| mW |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 |
|
| V |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 |
|
| mA |
Operation Temperature TOPR | -40 to 80 | °C | |||||||
Storage Temperature TSTG | -40 to 85 | °C | |||||||
Lead Soldering TemperatureTSOL |
Max.260±5°Cfor 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：
供应 0.28 英寸四位 数码管
信息内容：dzsc/18/9649/18964966.jpg 特点： 7.00mm(0.28)4位数 LED数码管 低电流操作 优良的品质外观 输出亮度较高 易于安装在PC板和PC槽上 IC兼容 多种颜色可选 标准：灰面白字 ROHS遵守Super Bright Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Part NoChipVFUnit:VIv TYP.(mcd) Common CathodeCommon AnodeEmitted ColorMateriallP(nm) TypMax BL-Q28A-41S-XXBL-Q28B-41S-XXHi RedGaAlAs/GaAs,SH6601.852.2095 BL-Q28A-41D-XXBL-Q28B-41D-XXSuper RedGaAlAs/GaAs,DH6601.852.20110 BL-Q28A-41UR-XXBL-Q28B-41UR-XXUltra RedGaAlAs/GaAs,DDH6601.852.20155 BL-Q28A-41E-XXBL-Q28B-41E-XXOrangeGaAsP/GaP6352.102.50105 BL-Q28A-41Y-XXBL-Q28B-41Y-XXYellowGaAsP/GaP5852.102.50105 BL-Q28A-41G-XXBL-Q28B-41G-XXGreenGaP/GaP5702.202.50110 Ultra Bright Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Part NoChipVFUnit:VIv TYP.(mcd) Common CathodeCommon AnodeEmitted ColorMateriallP(nm) TypMax BL-Q28A-41UHR-XXBL-Q28B-41UHR-XXUltra RedAlGaInP6452.10...
0.7英寸 5*7LED点阵 双色

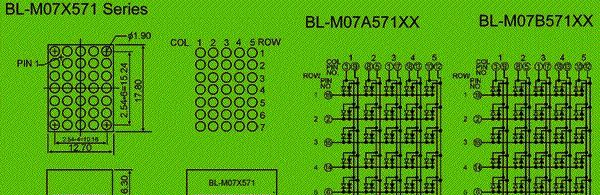

信息内容：特点: 0.7英寸的高度5x7 LED点阵 0.7英寸矩阵高(19.7mm) 1.90mm网点大小,圆点 5行*7列 高对比度，输出亮度较高 兼容ASCII码和EBCDIC代码 水平叠加 共阴共阳可选 易于安装在PC板和PC槽上 标准:灰面白点 符合RoHs Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)Part No Common CathodePart No Common AnodeColorWave length(V) typ(V) MaxBright (mcd)BL-M07A571SGBL-M07B571SGSuper Red6602.12.5100 Green5702.22.595BL-M07A571EGBL-M07B571EGOrange6352.12.590 Green5702.22.595BL-M07A571UEUGBL-M07B571UEUGUltra Orange6302.12.5100 Ultra Green5742.22.5130BL-M07A571DUGBL-M07B571DUGUltra Red6602.12.5110 Ultra Green5742.22.5130Product Dimension & Internal circuit diagramdzsc/18/9692/18969291.jpg 注: 1)所有的尺寸均以毫米计(英寸) 2)宽容是±0.25(0.01)除非另外注明。 3)规格如有变更,恕不另行通知。Reflector Surface color (1st number)/ dot Lens color (2nd number...
