供应片式贴片绕线电感MGTC1005-1.5UH
| 价 格： | 0.01 | |
| 应用范围： | 滤波 | |
| 种类： | 电流互感器 | |
| 品牌/商标： | MOTTO/迈翔 | |
| 型号/规格： | MGTC1005-1R5 | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 单层密绕式 | |
| 导磁体性质： | 磁芯 | |
| 磁芯形状： | 柱形 | |
| 工作频率： | 低频 | |
| 安装方式： | 贴片式 | |
| 骨架材料： | 聚苯乙烯 | |
| 品质因数Q： | 0 | |
| 电感量： | 1.5（mH） | |
| 额定电流： | 12（mA） | |
| 分布电容： | 0（F） |
供应片式贴片绕线电感MGTC1005-1.5UH
Motto MGTC1005-1.5UH, Various high power inductors are superior to be high saturation for surface mounting.
Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc.
dzsc/18/9408/18940826.jpg
dzsc/18/9408/18940826.jpg
Part No | L (uH) | DCR max (mΩ) | IDC max (A) | Test Freq. (Hz) |
| 1.Inductance tested at 2.52MHZ,0.1V
Packing; Reel size:16mm Quantity:1000pcs/Reel |
MGTC1005-47N | 0.047 | 0.45 | 25 | 50KHZ | ||
MGTC1005-56N | 0.056 | 0.45 | 25 | 50KHZ | ||
MGTC1005-68N | 0.068 | 0.45 | 25 | 50KHZ | ||
MGTC1005-82N | 0.082 | 0.45 | 25 | 50KHZ | ||
MGTC1005-R10 | 0.1 | 0.7 | 25 | 25KHZ | ||
MGTC1005-R12 | 0.12 | 0.7 | 25 | 25KHZ | ||
MGTC1005-R15 | 0.15 | 0.9 | 25 | 25KHZ | ||
MGTC1005-R18 | 0.18 | 1.1 | 25 | 25KHZ | ||
MGTC1005-R22 | 0.22 | 1.2 | 25 | 25KHZ | ||
MGTC1005-R27 | 0.27 | 1.2 | 25 | 25KHZ | ||
MGTC1005-R33 | 0.33 | 1.25 | 25 | 25KHZ | ||
MGTC1005-R39 | 0.39 | 1.5 | 18 | 25KHZ | ||
MGTC1005-R47 | 0.47 | 2 | 18 | 25KHZ | ||
MGTC1005-R56 | 0.56 | 2.35 | 18 | 25KHZ | ||
MGTC1005-R68 | 0.68 | 2.55 | 18 | 25KHZ | ||
MGTC1005-R82 | 0.82 | 3.15 | 18 | 25KHZ | ||
MGTC1005-1R0 | 1 | 0.9 | 18 | 10KHZ | ||
MGTC1005-1R2 | 1.2 | 1.2 | 15 | 10KHZ | ||
MGTC1005-1R5 | 1.5 | 1.2 | 15 | 10KHZ |
Special i nquir1ies besides the above common used types can be met on your requirement.
联系方式 | |||||||
公司: | 深圳市迈翔科技有限公司 | ||||||
网址： | http://www.mottotech.com | ||||||
客服： | 吴锦中 | QQ号： | 676279033 | 手机： | 13421804907 | 邮箱: | wjzmotto@163.com |
客服： | 胡伟 | QQ号： | 743330266 | 手机： | 13421804920 | 邮箱: | hwmotto@126.com |
客服： | 王星 | QQ号： | 448587907 | 手机： | 13632936972 | 邮箱: | szmotto@gmail.com |
电话: | 0755-28146395 27185239 27185329 | 传真： | 0755-28146095 61624574 | ||||
地址: | 中国深圳市宝安区龙华镇三联工业区联弓路九号 | ||||||
邮编: | 518109 | ||||||
communication equipments, DC/DC converters, etc.
"
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴伟
- 电话：755-28146395
- 传真：755-28146395
- 手机：
- QQ ：
厂家低价大批量出售平板电脑大电流专用大电流贴片功率电感

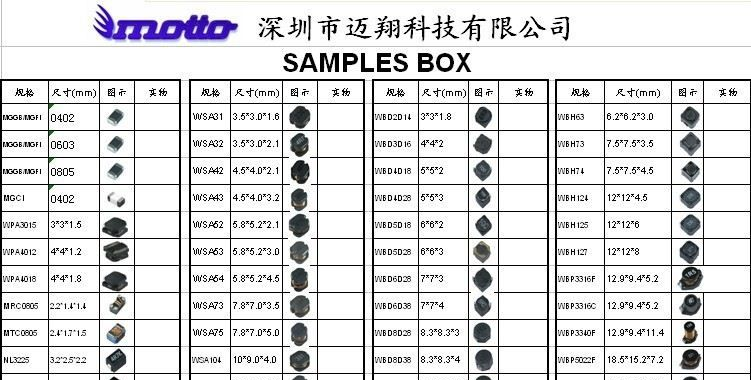

信息内容：厂家低价大批量出售平板电脑大电流专用大电流贴片功率电感特性：1.良好的可焊性和高耐热性 2.适合大电流3.适用于多种DC-DC转换器的理想选（DVD,DSC, 手机，PDA，GPS,CMMB,数码相框，电话机，CARAV等设备） dzsc/18/9422/18942205.jpg"
功率电感 贴片电感CD54,2.7uH

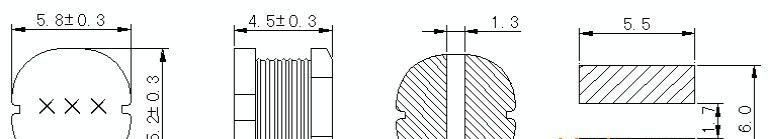

信息内容：功率电感贴片电感CD54,2.7uHMotto CD54 Series, Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/18/9426/18942607.jpgdzsc/18/9426/18942607.jpgPart NoL(uH)DCR max(mΩ)IDC max(A)Test Freq.(Hz) 1.Inductance tested at 100KHZ,0.1V2.SRF>13MHZ measured usingagilent / HP8753D network analyzer3.Inductance drip=10% typ. at rated isat4.△T=40℃rise typ. at irms5.Operationg temperature range -40℃to 125℃6.Electrical specifitions at 25℃ Packing;Reel size:12mmQuantity:1500pcs/ReelWSA54-1R0M1.0155.9100KHZWSA54-1R5M1.5254.7100KHZWSA54-1R8M1.8304.0100KHZWSA54-2R2M2.2353.8100KHZWSA54-2R7M2.7403.4100KHZWSA54-3R3M3.3453.3100KHZWSA54-3R9M3.9502.9100KHZWSA54-4R7M4.7602.8100KHZWSA54-5R6M5.6702.4100KHZWSA54-6R8M6.8802.1100KHZSpecial inquiries besides the above common used types can be met on your requ...
