功率电感 贴片电感CD54,2.7uH
| 价 格： | 0.01 | |
| 应用范围： | 滤波 | |
| 种类： | 电感线圈 | |
| 品牌/商标： | MOTTO | |
| 型号/规格： | WSA54-2R7M | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 单层间绕式 | |
| 导磁体性质： | 磁芯 | |
| 磁芯形状： | 工字形 | |
| 工作频率： | 低频 | |
| 安装方式： | 贴片式 | |
| 骨架材料： | 聚苯乙烯 |
功率电感贴片电感CD54,2.7uH
Motto CD54 Series, Various high power inductors are superior to be high saturation for surface mounting.
Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc.
dzsc/18/9426/18942607.jpg
dzsc/18/9426/18942607.jpg
Part No | L (uH) | DCR max (mΩ) | IDC max (A) | Test Freq. (Hz) |
| 1.Inductance tested at 100KHZ,0.1V agilent / HP8753D network analyzer
Packing; Reel size:12mm Quantity:1500pcs/Reel |
WSA54-1R0M | 1.0 | 15 | 5.9 | 100KHZ | ||
WSA54-1R5M | 1.5 | 25 | 4.7 | 100KHZ | ||
WSA54-1R8M | 1.8 | 30 | 4.0 | 100KHZ | ||
WSA54-2R2M | 2.2 | 35 | 3.8 | 100KHZ | ||
WSA54-2R7M | 2.7 | 40 | 3.4 | 100KHZ | ||
WSA54-3R3M | 3.3 | 45 | 3.3 | 100KHZ | ||
WSA54-3R9M | 3.9 | 50 | 2.9 | 100KHZ | ||
WSA54-4R7M | 4.7 | 60 | 2.8 | 100KHZ | ||
WSA54-5R6M | 5.6 | 70 | 2.4 | 100KHZ | ||
WSA54-6R8M | 6.8 | 80 | 2.1 | 100KHZ |
Special inquiries besides the above common used types can be met on your requirement.
联系方式 | |||||||
公司: | 深圳市迈翔科技有限公司 | ||||||
网址： | http://www.mottotech.com | ||||||
客服： | 吴锦中 | QQ号： | 676279033 | 手机： | 13421804907 | 邮箱: | wjzmotto@163.com |
客服： | 胡伟 | QQ号： | 743330266 | 手机： | 13421804920 | 邮箱: | hwmotto@126.com |
客服： | 王星 | QQ号： | 448587907 | 手机： | 13632936972 | 邮箱: | szmotto@gmail.com |
电话: | 0755-28146395 27185239 27185329 | 传真： | 0755-28146095 61624574 | ||||
地址: | 中国深圳市宝安区龙华镇三联工业区联弓路九号 | ||||||
邮编: | 518109 | ||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴伟
- 电话：755-28146395
- 传真：755-28146395
- 手机：
- QQ ：
插件电感-插件功率电感LH1616-181M
信息内容：插件电感-插件功率电感LH1616-181MMotto LH1616-181M, Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/18/9448/18944821.jpgPart NoL(UH)DCR(MΩ)MAXIDCMAX(A)Z TESTFreq(MHz) 1.Inductance tested at 100KHZ,0.1V2.SRF>13MHZ measured usingagilent / HP8753D network analyzer3.Inductance drip=10% typ. at rated isat4.△T=40℃rise typ. at irms5.Operationg temperature range -40℃to 125℃6.Electrical specifitions at 25℃ Packing;Reel size:16mmQuantity:1000pcs/ReelLH1616-4R7M4.76.712.6100LH1616-6R8M6.89.359.8100LH1616-100M1010.59.3100LH1616-120M12118.5100LH1616-150M1514.57.1100LH1616-180M1816.56.7100LH1616-220M22176.2100LH1616-270M27205.6100LH1616-330M33275.0100LH1616-390M39334.6100LH1616-470M47374.2100LH1616-560M56453.8100LH1616-680M68563.3100LH1616-820M8264.52.9100LH1616-101M100682.7100LH1...
1608系列片式贴片电感MGFI1608E220

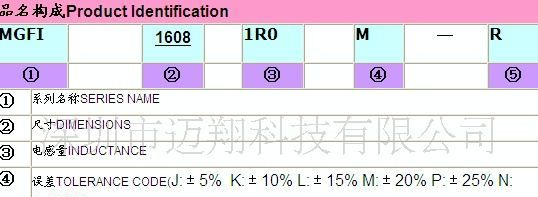

信息内容：1608系列片式贴片电感MGFI1608E220Motto MGFI1608E220, Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/18/9504/18950470.jpgPart NoL(uH)Q/MINI,QTESTFreq(MHz)SRF(MHZ)/MINRDC()MAXIr(mA)/MAX 1.Inductance tested at 100KHZ,0.1V2.SRF>13MHZ measured usingagilent / HP8753D network analyzer3.Inductance drip=10% typ. at rated isat4.△T=40℃rise typ. at irms5.Operationg temperature range -40℃to 125℃6.Electrical specifitions at 25℃ Packing;Reel size:16mmQuantity:1000pcs/ReelMGFI1608C1R21.235101100.8025MGFI1608C1R51.535101050.8025MGFI1608C1R81.83510950.9525MGFI1608C2R22.23510901.1515MGFI1608C2R72.73510801.3515MGFI1608C3R33.33510701.5515MGFI1608C3R93.93510601.7015MGFI1608C4R74.73510502.1015MGFI1608D5R65.6354451.555MGFI1608D6R86.8354401.705MGFI1608D8R28.2354352.104MGFI1608D10010.0352332.553MG...
