供应 优质LED点阵 1.5英寸16*16系列
| 价 格： | 95.00 | |
| 是否提供加工定制： | 是 | |
| 种类： | LED点阵 | |
| 型号： | BL-M15AFF1Y-21 | |
| 品牌： | BETLUX | |
| 显示颜色： | 全彩 | |
| 显示方式： | 其他 | |
| 像素直径： | 其他（mm） | |
| 像素间距： | 多种（mm） | |
| 模组尺寸： | 多种（mm） | |
| 屏幕尺寸： | 多种（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 使用环境： | 半户外 | |
| 安装方式： | 镶嵌式 |
特点：
列:16岁,行:16
1.5英寸矩阵高度
网点大小：3.70mm
低电流操作
高对比度，输出亮度较高
兼容ASCII码和EBCDIC代码
水平叠加
共阴共阳可选
便于安装在PC板和PC槽上
多种颜色可选
标准:灰面白点
符合ROHS
Super Bright
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | ||||
Typ | Max | |||||||
BL-M15AFF1S-XX | BL-M15BFF1S-XX | Hi Red | GaAlAs/GaAs,SH | 660 | 1.85 | 2.20 | 500 |
|
BL-M15AFF1D-XX | BL-M15BFF1D-XX | Super Red | GaAlAs/GaAs,DH | 660 | 1.85 | 2.20 | 750 |
|
BL-M15AFF1UR-XX | BL-M15BFF1UR-XX | Ultra Red | GaAlAs/GaAs,DDH | 660 | 1.85 | 2.20 | 950 |
|
BL-M15AFF1E-XX | BL-M15BFF1E-XX | Orange | GaAsP/GaP | 635 | 2.10 | 2.50 | 400 |
|
BL-M15AFF1Y-XX | BL-M15BFF1Y-XX | Yellow | GaAsP/GaP | 585 | 2.10 | 2.50 | 400 |
|
BL-M15AFF1G-XX | BL-M15BFF1G-XX | Green | GaP/GaP | 570 | 2.20 | 2.50 | 380 |
|
Ultra Bright
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | ||||
Typ | Max | |||||||
BL-M15AFF1UHR-XX | BL-M15BFF1UHR-XX | Ultra Red | AlGaInP | 645 | 2.10 | 2.50 | 950 |
|
BL-M15AFF1UE-XX | BL-M15BFF1UE-XX | Ultra Orange | AlGaInP | 630 | 2.10 | 2.50 | 800 |
|
BL-M15AFF1YO-XX | BL-M15BFF1YO-XX | Ultra Amber | AlGaInP | 619 | 2.10 | 2.50 | 800 |
|
BL-M15AFF1UY-XX | BL-M15BFF1UY-XX | Ultra Yellow | AlGaInP | 590 | 2.10 | 2.50 | 800 |
|
BL-M15AFF1UG-XX | BL-M15BFF1UG-XX | Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 620 |
|
BL-M15AFF1PG-XX | BL-M15BFF1PG-XX | Ultra Pure Green | InGaN | 525 | 3.80 | 4.50 | 970 |
|
BL-M15AFF1B-XX | BL-M15BFF1B-XX | Ultra Blue | InGaN | 470 | 2.70 | 4.20 | 360 |
|
BL-M15AFF1W-XX | BL-M15BFF1W-XX | Ultra White | InGaN | / | 2.70 | 4.20 | 700 |
|
dzsc/18/9155/18915563.jpg
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：
0.50双位数码管
信息内容：功能:0.50英寸双位LED数码管0.50英寸数字高度（12.70mm）宽*高：25.00*19.00mm ；低电流操作共阴共阳可选优良的品质外观输出亮度高 易于安装IC兼容多种颜色可选 标准：灰底白面通过RoHs检测 Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)Part No Common CathodePart No Common AnodeColorWave length(V) typ(V) MaxBright (mcd)BL-D50A-21HBL-D50B-21HRed7002.252.610BL-D50A-21DBL-D50B-21DSuper Red6601.852.2190BL-D50A-21SBL-D50B-21SHi Red6601.852.2100BL-D50A-21URBL-D50B-21URUltra Red6601.852.2160BL-D50A-21EBL-D50B-21EOrange6352.12.555BL-D50A-21UEBL-D50B-21UEUltra Orange6302.12.5115BL-D50A-21UYBL-D50B-21UYUltra Yellow5902.12.5115BL-D50A-21YBL-D50B-21YYellow5852.12.555BL-D50A-21UGBL-D50B-21UGUltra Green5742.22.575BL-D50A-21GBL-D50B-21GGreen5702.22.550BL-D50A-21PGBL-D50B-21PGUltra Pure Green5253.04.2185BL-D50A-21UBBL-D50B-21UBultra Blue4703.04.275BL-D50A-21BBL-D50B-21Bultra Blue4703.04.245BL-...

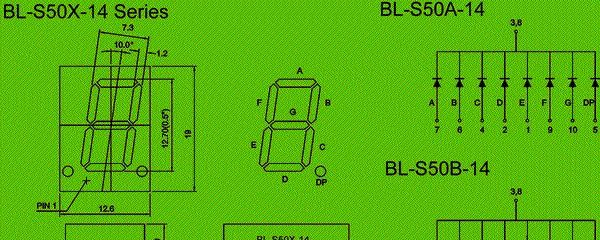

供应 0.52英寸单位 LED数码管
