供应 0.52英寸单位 LED数码管
| 价 格： | 2.00 | |
| 是否提供加工定制： | 是 | |
| 种类： | LED数码管 | |
| 型号： | BL-S50A-14,BL-S50B-14 | |
| 品牌： | BETLUX | |
| 显示颜色： | 全彩 | |
| 显示方式： | 静态显示 | |
| 像素直径： | Ф3（mm） | |
| 像素间距： | 多种（mm） | |
| 模组尺寸： | 多种（mm） | |
| 屏幕尺寸： | 多种（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 使用环境： | 半户外 | |
| 安装方式： | 镶嵌式 |
特点:
0.5英寸单数字LED显示
0.5英寸的数字高(12.70mm)
宽度*高度：16.00*25.00mm
低电流操作
共阴共阳可选
优良的品质外观
输出亮度高
易于安装在PC板和PC槽上
IC兼容
多种颜色可选
标准:灰面白字
符合RoHs
Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)
| Part No Common Cathode | Part No Common Anode | Color | Wave length | (V) typ | (V) Max | Bright (mcd) |
| BL-S50A-14H | BL-S50B-14H | Red | 700 | 2.25 | 2.6 | 2 |
| BL-S50A-14D | BL-S50B-14D | Super Red | 660 | 1.85 | 2.2 | 30 |
| BL-S50A-14S | BL-S50B-14S | Hi Red | 660 | 1.85 | 2.2 | 20 |
| BL-S50A-14UR | BL-S50B-14UR | Ultra Red | 660 | 1.85 | 2.2 | 38 |
| BL-S50A-14E | BL-S50B-14E | Orange | 635 | 2.1 | 2.5 | 25 |
| BL-S50A-14UE | BL-S50B-14UE | Ultra Orange | 630 | 2.1 | 2.5 | 27 |
| BL-S50A-14UY | BL-S50B-14UY | Ultra Yellow | 590 | 2.1 | 2.5 | 27 |
| BL-S50A-14Y | BL-S50B-14Y | Yellow | 585 | 2.1 | 2.5 | 25 |
| BL-S50A-14UG | BL-S50B-14UG | Ultra Green | 574 | 2.2 | 2.5 | 30 |
| BL-S50A-14G | BL-S50B-14G | Green | 570 | 2.2 | 2.5 | 25 |
| BL-S50A-14PG | BL-S50B-14PG | Ultra Pure Green | 525 | 3.0 | 4.2 | 40 |
| BL-S50A-14UB | BL-S50B-14UB | ultra Blue | 470 | 3.0 | 4.2 | 70 |
| BL-S50A-14B | BL-S50B-14B | ultra Blue | 470 | 3.0 | 4.2 | 50 |
| BL-S50A-14W | BL-S50B-14W | Ultra White | / | 2.7 | 4.2 | 50 |
Package configuration & Internal circuit diagram
dzsc/18/9215/18921507.jpg
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is ±0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to 80 | °C | ||||||
| Storage Temperature TSTG | -40 to 85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to 80 | °C | |||||||
| Storage Temperature TSTG | -40 to 85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260± 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：
供应 30*44mm LED光块
信息内容：特点: 30*44mm箭头显示 超亮度 低电流操作 优良的品质外观 容易安装在PC板和PC槽上 智能卡兼容 符合ROHS n Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA) Part NoChipVFUnit:VIv TYP.(mcd) Emitted ColorMateriallP(nm) TypMax BL-AT5Z3044S-XXHi RedGaAlAs/GaAs,SH6601.852.2049 BL-AT5Z3044D-XXSuper RedGaAlAs/GaAs,DH6601.852.2084 BL-AT5Z3044UR-XXUltra RedGaAlAs/GaAs,DDH6601.852.20168 BL-AT5Z3044E-XXOrangeGaAsP/GaP6352.102.5035 BL-AT5Z3044Y-XXYellowGaAsP/GaP5852.102.5035 BL-AT5Z3044G-XXGreenGaP/GaP5702.202.5035 BL-AT5Z3044UHR-XXUltra RedAlGaInP6452.102.50168 BL-AT5Z3044UE-XXUltra OrangeAlGaInP6302.102.5098 BL-AT5Z3044YO-XXUltra AmberAlGaInP6192.102.5098 BL-AT5Z3044UY-XXUltra YellowAlGaInP5902.102.5098 BL-AT5Z3044UG-XXUltra GreenAlGaInP5742.202.5085 BL-AT5Z3044PG-XXUltra Pure GreenInGaN5253.804.5085 BL-AT5Z3044UB-XXUltra BlueInGaN4702.704.2085 BL-AT5Z3044UW-XXUltra WhiteInGaN/2.704.20120 ·-XX: Ref Surface / Epoxy color：Number012345...
供应 优质 0.3英寸 白光 单位 LED数码管

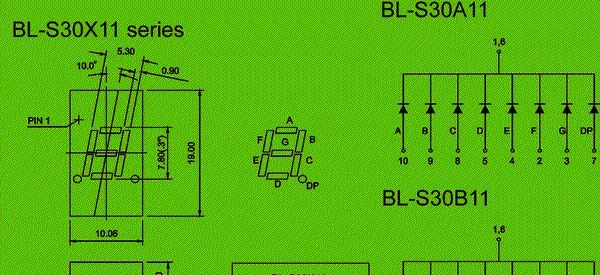

信息内容：特点: 0.3英寸单数字LED显示 0.3英寸高(数字7.80mm) 宽度*高度：10.06*19.00mm 共阴共阳可选 低电流操作 优良的品质外观 光输出高 易于安装在PC板和PC槽上 IC兼容 多种颜色可选 标准:灰面白字 符合RoHs Super Bright LED Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)Part No Common CathodePart No Common AnodeColorWave length(V) typ(V) MaxBright (mcd)BL-S30A-11HBL-S30B-11HRed7002.252.6.5BL-S30A-11DBL-S30B-11DSuper Red6601.852.212BL-S30A-11SBL-S30B-11SHi Red6601.852.26BL-S30A-11URBL-S30B-11URUltra Red6601.852.214BL-S30A-11EBL-S30B-11EOrange6352.12.510BL-S30A-11UEBL-S30B-11UEUltra Orange6302.12.512BL-S30A-11UYBL-S30B-11UYUltra Yellow5902.12.512BL-S30A-11YBL-S30B-11YYellow5852.12.510BL-S30A-11UGBL-S30B-11UGUltra Green5742.22.518BL-S30A-11GBL-S30B-11GGreen5702.22.510BL-S30A-11PGBL-S30B-11PGUltra Pure Green5253.04.222BL-S30A-11UBBL-S30B-11UBultra Blue4703.04.231.5BL-S30A-11...
