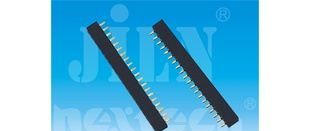

1.27mm 排母系列连接器
| 价 格： | 0.10 | |
| 是否提供加工定制： | 否 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | 1.27mm | |
| 应用范围： | 电脑 | |
| 种类： | 排针/排母/排线 | |
| 接口类型： | AC/DC |
1.27mm Female Header Dual Row SMT
Current Rating : 1AMP
Operation Temperature:-40°C to 105°C
Contact Resistance :20mΩ Max
Insulation Resistance :1000MΩ Min
Withstanding Voltage :AC 500V
Insulator Material :Polyester(UL94V-0)
Standard:Nylon-6T
Contact Material :Phosphor Bronze
Contact plating :Au or Sn Over 50u″ Ni
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王坚波
- 电话：0755-27483253
- 传真：0755-27483253
- 手机：
- QQ ：
0.8*1.2mm排母系列连接器
信息内容：0.8*1.2mm Female Header Dual Row SMT Current Rating : 0.75AMPOperation Temperature:-40°C to 105°CContact Resistance :30mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 500V Insulator Material :High Temperature Thermoplastic(UL94V-0) Contact Material :Phosphor BronzeContact plating :Au over 50 u″ Ni"
1.00mm排母系列连接器
信息内容：1.00mm Female Header Single Row Bottom Ebrtt Current Rating : 0.75AMPOperation Temperature:-40°C to 105°CContact Resistance :30mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 500V Insulator Material :High Temperature Thermoplastic(UL94V-0) Contact Material :Phosphor BronzeContact plating :Au over 50 u″ Ni
