供应3M 558,汽车防盗器接线端子
| 价 格： | 面议 | |
| 是否提供加工定制： | 否 | |
| 品牌/商标： | 3M | |
| 型号/规格： | 3M558 | |
| 应用范围： | 汽车 | |
| 种类： | 端子(terminal) | |
| 接口类型： | IDC | |
| 支持卡数： | 二合一 | |
| 读卡类型： | Micro | |
| 形状： | 矩形 | |
| 制作工艺： | 冷压 | |
| 特性： | 防潮 | |
| 接触件材质： | 金属 | |
| 绝缘体材质： | PVC | |
| 芯数： | 二芯 |
3M接线端子，型号：3M 558。 适用于汽车接线,电脑接线,线材接线

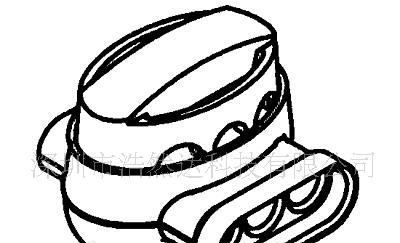

| 3M™ Scotchlok™ 558 Electrical IDC, Run and Tap, Flame Retardant |
 [click to enlarge] |  | Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. It has an AWG range 22-16 (0,5-1,5).
深圳市浩然达科技有限公司
公司信息未核实
公司相关产品
3M 穿刺连接器,电缆连接头,穿刺线夹,电缆连接头信息内容：Use 3M™ Scotchlok™ Electrical IDCs 316IR to electrically connect two or three wire ends, insulate the connection and provide a moisture resistant seal. Recommended for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other moisture resistance wires for applications of less than 30 volts. Sealant is a mineral oil-based grease. Maximum insulation O.D.diameter of 0.155 inches (3,9 mm) and a operating temperature of 221°F (105°C). The suggested application tool for this connector is the E-9BM Crimping Tool.
供应3M,314U,端子连接器信息内容：ApplicationUse Part No. 314U to electrically connect two or threewire ends and insulate the connection.Wire Range22-14 AWG Solid or stranded, tinned or untinned(0,5-1.5 mm2) copper conductors. For use withcommon thermoplastic insulated wires: T, TF, TFF,TFN, TFFN, AWM, TEW, SAE-GPT with a maximuminsulation diameter of .150 inches (3,8 mm). Maximumrecommended current for general purpose applications:22 AWG - 3 AMPS, 20 AWG - 5 AMPS, 18 AWG -7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS. 相关产品 |
