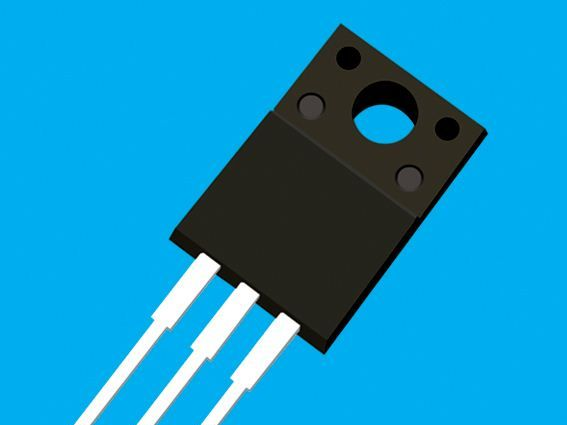

无锡固电ISC 供应2SD1548晶体管,三极管,功率管
| 价 格： | 5.50 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SD1548 | |
| 应用范围： | 功率 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 集电极允许电流ICM： | 10（A） | |
| 集电极耗散功率PCM： | 50（W） | |
| 结构： | 点接触型 | |
| 封装形式： | TO-3P(H)IS | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·High Breakdown Voltage-
: VCBO= 1400V (Min)
·High Switching Speed
·Low Saturation Voltage
APPLICATIONS
·Color TV horizontal output applications.
·Switching regulator output applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 1400 | V |
VCEO | Collector-Emitter Voltage | 600 | V |
VEBO | Emitter-Base Voltage | 5 | V |
IC | Collector Current- Continuous | 10 | A |
IB | Base Current- Continuous | 5 | A |
PC | Collector Power Dissipation @ TC=25℃ | 50 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王燕
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：15961889150
- QQ ：
无锡固电ISC供应2SD2000晶体管,三极管,功率管
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage-: V(BR)CEO= 60V(Min.)·High Speed Switching·Good Linearity of hFE·High Collector Power Dissipation APPLICATIONS·Designed for power switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage 80VVCEOCollector-Emitter Voltage 60VVEBOEmitter-Base Voltage6VICCollector Current-Continuous4AIBBase Current- Continuous1APCCollector Power Dissipation@ Ta=25℃2WCollector Power Dissipation@ TC=25℃35TJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= 25mA; IB= 060 VVCE(sat)Collector-Emitter Saturation VoltageIC= 4A; IB= 0.4A 1.5VVBE(on)Base-Emitter On VoltageIC= 4A; VCE= 4V 2.0VICBOCollector Cutoff CurrentVCB= 80V; IE= 0...
