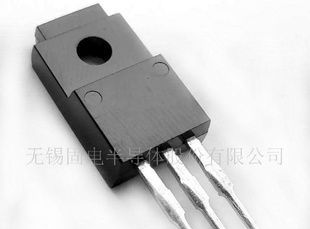

无锡固电ISC供应2SC4689三极管
| 价 格： | 4.50 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SC4689 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= 120V(Min)
·Collector-Emitter Saturation Voltage-
: VCE(sat)= 2.0V(Max)@ IC= 6A
·Complement to Type 2SA1804
APPLICATIONS
·Power amplifier applications
·Recommend for 55W high fidelity audio frequency
amplifier output stage applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 120 | V |
VCEO | Collector-Emitter Voltage | 120 | V |
VEBO | Emitter-Base voltage | 5 | V |
IC | Collector Current-Continuous | 8 | A |
ICM | Collector Current-Peak | 16 | A |
IB | Base Current-Continuous | 0.8 | A |
PC | Collector Power Dissipation @ TC=25℃ | 70 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= 50mA; IB= 0 | 120 |
| V | |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 6A; IB= 0.6A |
|
| 2.0 | V |
VBE(on) | Base-Emitter On Voltage | IC= 4A; VCE= 5V |
|
| 1.5 | V |
ICBO | Collector Cutoff Current | VCB= 120V; IE= 0 |
|
| 5.0 | μA |
IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 |
|
| 5.0 | μA |
hFE-1 | DC Current Gain | IC= 1A; VCE= 5V | 55 |
| 160 |
|
hFE-2 | DC Current Gain | IC= 4A; VCE= 5V | 35 |
|
|
|
fT | Current-Gain—Bandwidth Product | IC= 1A; VCE= 5V |
| 30 |
| MHz |
COB | Output Capacitance | IE= 0; VCB= 10V, ftest= 1MHz |
| 190 |
| pF |
u hFE-1Classifications
R | O |
55-110 | 80-160 |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 谈增琴
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：
- QQ ：
供应2SD1734三极管
信息内容：TO-220Fa供应2SD1734三极管有意者请联系!"

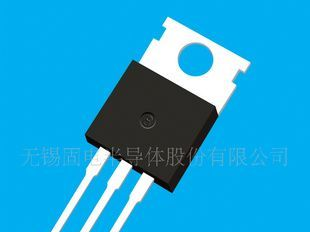

无锡固电ISC 供应BD912 三极管 达林顿三极管 增强型MOS管
