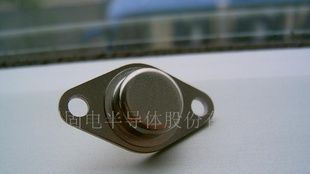

供应2SD792三极管
信息内容：供应2SD792三极管,TO-3，有意者请联系"

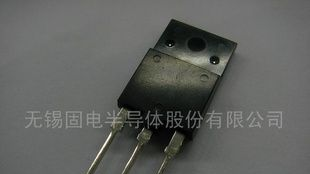

无锡固电ISC供应2SC4689三极管
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage-: V(BR)CEO= 120V(Min)·Collector-Emitter Saturation Voltage-: VCE(sat)= 2.0V(Max)@ IC= 6A·Complement to Type 2SA1804 APPLICATIONS·Power amplifier applications·Recommend for 55W high fidelity audio frequencyamplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage 120VVCEOCollector-Emitter Voltage 120VVEBOEmitter-Base voltage5VICCollector Current-Continuous8AICMCollector Current-Peak16AIBBase Current-Continuous0.8APCCollector Power Dissipation@ TC=25℃70WTJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown Voltage IC= 50mA; IB= 0120 VVCE(sat)Collector-Emitter Saturation VoltageIC= 6A; IB= 0.6A 2.0V...
