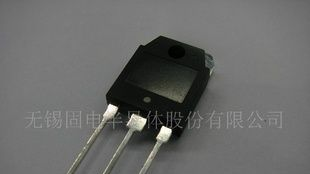

无锡固电ISC 供应三极管BU921P
信息内容：DESCRIPTION ·High Voltage·DARLINGTON APPLICATIONS·Designed for automotive ignition applications and invertercircuits for motor control. Absolute maximum ratings (Ta=25℃)SYMBOLPARAMETERVALUEUNITVCESCollector-Emitter Voltage VBE= 0450VVCEOCollector-Emitter Voltage400VVEBOEmitter-Base Voltage5VICCollector Current10AICMCollector Current-peak15AIBBase Current5APCCollector Power Dissipation@TC=25℃105WTjJunction Temperature150℃TstgStorageTemperature Range-65~150℃ THERMAL CHARACTERISTICSSYMBOLPARAMETERMAXUNITRth j-cThermal Resistance, Junction to Case1.2℃/W ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITVCEO(SUS)Collector-Emitter Sustaining VoltageIC= 0.1A; IB= 0400 VVCE(sat)-1Collector-Emitter Saturation VoltageIC= 5A; IB= 50mA 1.8VVCE(sat)-2Collector-Emitter Saturation VoltageIC= 7A; IB= 140mA 1.8VVBE(sat)-1Base-Emitter Saturation VoltageIC= 5A; IB= 50mA 2.2VVBE(sat)-2Base-Emitter Saturation Voltage...
供应2SD935三极管
信息内容：供应2SD935三极管,TO-3PN，有意者请联系"
