三极管9012，TO-92
| 价 格： | 0.04 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | S9012 | |
| 应用范围： | 放大 | |
| 功率特性： | 小功率 | |
| 频率特性： | 低频 | |
| 极性： | PNP型 | |
| 结构： | 点接触型 | |
| 材料： | 硅(Si) | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 | |
| 营销方式： | 厂家直销 | |
| 产品性质： | 热销 |
厂家直销，长期大量供应三极管S9012，To-92，欢迎来电咨询。
dzsc/18/8662/18866221.jpg
ELECTRICAL CHARACTERISTICS(Tamb=25℃unless otherwise specified)
Parameter | Symbol | Test conditions | MIN | TYP | MAX | UNIT |
Collector-base breakdown voltage | V(BR)CBO | lc=-100μA, lE=0 | -40 |
|
| V |
Collector-emitter breakdown voltage | V(BR)CEO | lc=-1mA, lB=0 | -25 |
|
| V |
Emitter-base breakdown voltage | V(BR)EBO | lE=-100μA,lc=0 | -5 |
|
| V |
Collector cut-off current | lCBO | VCB=-40V, lB=0 |
|
| -0.1 | μA |
Collector cut-off current | lCEO | VCE=-20V, lB=0 |
|
| -1 | μA |
Emitter cut-off current | lEBO | VEB=-5V, lc=0 |
|
| -0.1 | μA |
DC current gain | hFE | VCE=-1V,lc=-50mA | 64 |
| 400 |
|
Collector-emitter saturation voltage | VCE(sat) | lc=-500mA,lB=-50mA |
|
| -0.5 | V |
Base-emitter saturation voltage | VBE(sat) | lc=-500mA,lB=-50mA |
|
| -1.2 | V |
Transition frequency | fT | VCE=-6V,lc=-20mA f=30MHZ | 150 | 180 |
| MHZ |
CLASSIFICATION OF hFE(1)
Rank | D | E | F | G | H | I | J |
Range | 64-91 | 78-112 | 96-135 | 112-166 | 144-202 | 190-300 | 300-400 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 杨斌
- 电话：0755-29769280
- 传真：0755-29769280
- 手机：
- QQ ：

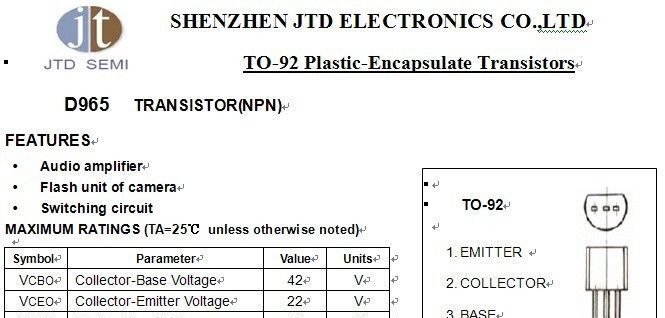

三极管D965，TO-92
信息内容：厂家直销，长期供应三极管D965，TO-92，欢迎来电咨询。 dzsc/18/8668/18866821.jpg ELECTRICAL CHARACTERISTICS(Tamb=25℃unless otherwise specified)ParameterSymbolTest conditionsMINTYPMAXUNITCollector-base breakdown voltageV(BR)CBOlc=0.1mA, lE=042 VCollector-emitter breakdown voltageV(BR)CEOlc=1mA, lB=022 VEmitter-base breakdown voltageV(BR)EBOlE=10mA,lc=06 VCollector cut-off currentlCBOVCB=30V, lB=0 0.1μAEmitter cut-off currentlEBOVEB=6V, lc=0 0.1μADC current gainhFE(1)VCE=2V,lc=0.15mA150 hFE(2)VCE=2V,lc=500mA340 2000 hFE(3)VCE=2V,lc=2A150 Collector-emitter saturation voltageVCE(sat)lc=3000mA,lB=100mA 0.35VTransition frequencyftVCE=6V,lc=50mA,f=30MHZ 150 MHzCLASSIFICATION OF hFE(1)RankRYVRange340-600560-950900-2000
三极管9014，TO-92
信息内容：厂家直销，长期大量供应三极管S9014，To-92，欢迎来电咨询。dzsc/18/8669/18866942.jpgELECTRICAL CHARACTERISTICS(Tamb=25℃unless otherwise specified) ParameterSymbolTest conditionsMINTYPMAXUNITCollector-base breakdown voltageV(BR)CBOlc=100μA, lE=050 VCollector-emitter breakdown voltageV(BR)CEOlc=1mA, lB=045 VEmitter-base breakdown voltageV(BR)EBOlE=100μA,lc=05 VCollector cut-off currentlCBOVCB=50V, lB=0 0.1μACollector cut-off currentlCEOVCE=35V, lB=0 1μAEmitter cut-off currentlEBOVEB=5V, lc=0 0.1μADC current gainhFEVCE=5V,lc=1mA60 1000 Collector-emitter saturation voltageVCE(sat)lc=-100mA,lB=5mA 0.3VBase-emitter saturation voltageVBE(sat)lc=100mA,lB=5mA 1VTransition frequencyfTVCE=5V,lc=10mAf=30MHZ150 MHZ CLASSIFICATION OF hFE(1)RankABCDRange60-150100-300200-600400-1000
