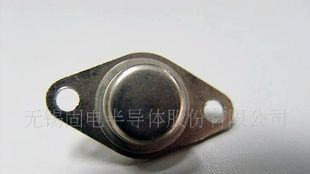

无锡固电ISC 供应2N4904三极管
| 价 格： | 8.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2N4904 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 击穿电压VCBO： | 40（V） | |
| 集电极允许电流ICM： | 5（A） | |
| 集电极耗散功率PCM： | 87.5（W） | |
| 截止频率fT： | 4（MHz） | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 金属封装 |
DESCRIPTION
·Low Collector Saturation Voltage-
: VCE(sat)= -1.5V(Max.)@ IC= -5A
·DC Current Gain-
: hFE= 25-100 @IC= -2.5A
·Complement to Type 2N4913
APPLICATIONS
·Designed for general purpose use in power amplifier and
switching circuits.
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -40 | V |
VCEO | Collector-Emitter Voltage | -40 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -5 | A |
IB | Base Current-Continuous | -1 | A |
PC | Collector Power Dissipation@TC=25℃ | 87.5 | W |
TJ | Junction Temperature | 200 | ℃ |
Tstg | Storage Temperature | -65~200 | ℃ |
"
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 谈增琴
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：
- QQ ：
无锡固电ISC 供应三极管2SA969
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage: V(BR)CEO= -160V(Min)·Good Linearity of hFE·Complement to Type 2SC2239 APPLICATIONS·Power amplifier applications·Driver stage amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage -160VVCEOCollector-Emitter Voltage -160VVEBOEmitter-Base Voltage-5VICCollector Current-Continuous-1.5AIEEmitter Current- Continuous1.5APCTotal Power Dissipation@ TC=25℃25WTJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= -10mA ; IB= 0-160 VV(BR)EBOEmitter-BaseBreakdownVoltageIE= -1mA ; IC= 0-5 VVCE(sat)Collector-Emitter Saturation VoltageIC= -0.5A; IB= -50mA -1.5VVBE(on)Base-Emitter On VoltageIC= -0.5A ; VCE= -5V -1.0VICBO...

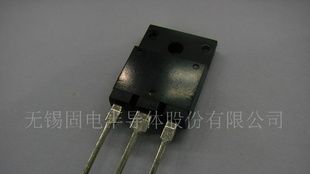

无锡固电ISC 供应三极管BU932RPFI
