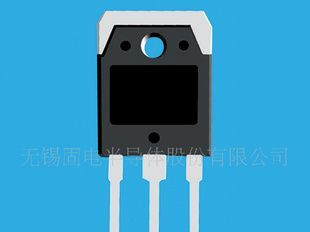

无锡固电ISC 供应三极管2SA658
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SA658 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 金属封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -50V(Min.)
·Complement to Type 2SC521
APPLICATIONS
·Power amplifier applications.
·Power switching applications.
·DC-DC converter applications.
·Regulator applications.
Absolute maximum ratings(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -70 | V |
VCEO | Collector-Emitter Voltage | -50 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -7 | A |
IB | Base Current | -2 | A |
PC | Collector Power Dissipation @TC=25℃ | 50 | W |
Tj | Junction Temperature | 150 | ℃ |
Tstg | Storage Temperature | -65~150 | ℃ |
ELECTRICAL CHARACTERISTICS
Tj=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -50mA; IB= 0 | -50 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -5A; IB= -1A |
|
| -2.0 | V |
VBE(sat) | Base-EmitterSaturationVoltage | IC= -5A; IB= -1A |
|
| -2.5 | V |
ICBO | Collector Cutoff Current | VCB= -70V; IE= 0 |
|
| -0.1 | mA |
IEBO | Emitter Cutoff Current | VEB= -5V; IC= 0 |
|
| -5 | mA |
hFE-1 | DC Current Gain | IC= -1A; VCE= -5V | 30 |
| 300 |
|
hFE-2 | DC Current Gain | IC= -5A; VCE= -5V | 15 |
|
|
|
COB | Collector Output Capacitance | IE= 0; VCB= -10V; f= 1MHz |
| 150 |
| pF |
fT | Current-Gain—Bandwidth Product | IC= -1A; VCE= -10V |
| 5 |
| MHz |
