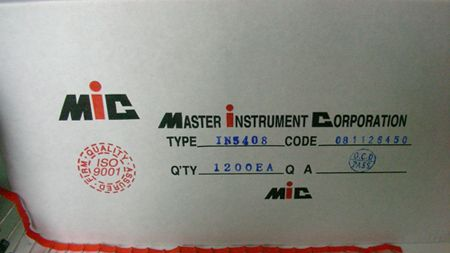

dzsc/18/8432/18843299.jpg

    1N5400-1N5408
Discrete POWER & Signal Technologies
1N5400 - 1N5408
Features * * *
3.0 ampere operation at TA = 75C with no thermal runaway. High current capability. Low leakage.
1.0 min (25.4)
Dimensions in inches (mm)
DO-201AD
COLOR BAND DENOTES CATHODE
0.375 (9.53) 0.285 (7.24)
0.210 (5.33) 0.190 (4.83) 0.052 (1.32) 0.048 (1.22)
3.0 Ampere General Purpose Rectifiers
Absolute Maximum Ratings*
Symbol
IO if(surge) PD RJA Tstg TJ
TA = 25C unless otherwise noted
Parameter
Average Rectified Current .375 " lead length @ TA = 75C Peak Forward Surge Current 8.3 ms single half-sine-wave Superimposed on rated load (JEDEC method) Total Device Dissipation Derate above 25C Thermal Resistance, Junction to Ambient Storage Temperature Range Operating Junction Temperature
Value
3.0
Units
A
200 6.25 50 20 -55 to +150 -55 to +150
A W mW/C C/W C C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Electrical Characteristics
Parameter
5400 Peak Repetitive Reverse Voltage Maximum RMS Voltage DC Reverse Voltage (Rated VR) Maximum Reverse Current @ rated VR TA = 25C TA = 100C Maximum Forward Voltage @ 3.0 A Maximum Full Load Reverse Current, Full Cycle TA = 105C Typical Junction Capacitance VR = 4.0 V, f = 1.0 MHz 50 35 50
TA = 25C unless otherwise noted
Device
5401 100 70 100 5402 200 140 200 5403 300 210 300 5404 400 280 400 5.0 500 1.2 0.5 30 5405 500 350 500 5406 600 420 600 5407 800 560 800 5408 1000 700 1000
Units
V V V A A V mA pF
a 1998 Fairchild Semiconductor Corporation
1N5400-1N5408
General Purpose Rectifiers
(continued)
Typical Characteristics
Forward Current Derating Curve
4 FORWARD CURRENT (A)
Forward Characteristics
100 FORWARD CURRENT (A)
3
9.5mm LEAD LENGTH
10 5 1
2
T J = 25C Pulse Width = 200S 1% Duty Cycle
1
0.1
0 25
50
75 100 125 150 175 AMBIENT TEMPERATURE (  C)
200
0.01 0.4
0.6
0.8 1 1.2 1.4 FORWARD VOLTAGE (V)
1.6
1.8
Overload Surge Current
200 FORWARD SURGE CURRENT (A) REVERSE CURRENT (  A) 100
Reverse Characteristics
160
10
120
80
T A = 105  C
1
TA = 25 C
40
0
1
2
5 10 20 50 NUMBER OF CYCLES AT 60Hz
100
0.1
0
20 40 60 80 100 120 NORMALIZED REVERSE VOLTAGE (%)
140
Junction Capacitance
100 50 CAPACITANCE (pF)
10 5
1 0.1
1 5 10 REVERSE VOLTAGE (V)
