ARL2512 AR2512
| 价 格： | 1.00 | |
| 是否提供加工定制： | 是 | |
| 产品类型： | 整流管 | |
| 是否进口： | 否 | |
| 品牌/商标： | PN | |
| 型号/规格： | ARL2512 AR2512 | |
| 材料： | 硅(Si) | |
| 主要参数： | IF正向直流电流25A VB反向击穿电压1200V | |
| 用途： | 高压整流二极管 |
|
SYMBOLS | ARL2505 ARSL2505 | ARL251 ARSL251 | ARL252 ARSL252 | ARL254 ARSL254 | ARL256 ARSL256 | ARL258 ARSL258 | ARL2510 ARSL2510 | ARL2512 ARSL2512 |
UNITS |
峰值反向電壓 Maximum recurrent reverse voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
Volts |
RMS輸入電壓 Maximum RMS voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
840 |
Volts |
直流阻斷電壓 Maximum DC blocking voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
Volts |
平均正向整流電流 Maximum average forward rectified current at Tc=60℃ |
I(AV) |
25 |
Amps | |||||||
正向峰值浪涌電流 Peak forward surge current single sine-wave on rated load (JEDEC Method) |
IFSM |
300 |
Amps | |||||||
25A時正向瞬間電壓降 Maximum instantaneous forward voltage drop at6A,Tj=25℃ |
VF |
1.1 |
Volts | |||||||
反向漏電流 Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ |
IR |
5.0 100.0 |
μA | |||||||
工作溫度和存儲溫度 Operating and Storage Temperature Range | TJ TSTG |
-55 TO +150 | ℃ | |||||||
大量供应：AUTO ARS2505THRU ARS2512 LEAD BUTTON
AUTO ARS35505THRU ARS3510 LEAD BUTTON
AUTO ARS5005 THRU ARS5010 LEAD BUTTON
以及25A /35A/50A各种规格的TVS LEAD BUTTON
"- 所属城市：湖北
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周慧
- 电话：8607124767777
- 传真：8607124777999
- 手机：
- QQ ：
BLOCK 整流二级管 8335/8341
信息内容：SYMBOL BD354NBD354P UNITS峰值反向電壓Maximum recurrent reverse voltage VRRM 400 400 VoltsRMS輸入電壓Maximum RMS voltage VRMS 280280 Volts直流阻斷電壓Maximum DC blocking voltage VDC 400 400 Volts平均正向整流電流Maximum average forward rectified current atTc=60℃ I(AV) 35 Amps正向峰值浪涌電流Peak forward surge current single sine-wave on rated load (JEDEC Method) IFSM 350 Amps35A時正向瞬間電壓降Maximum instantaneous forward voltage drop at6A,Tj=25℃ VF 1.1 Volts反向漏電流Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃ IR 5.0200.0 μA工作溫度和存儲溫度Operating and Storage Temperature RangeTJTSTG -55 TO +150℃

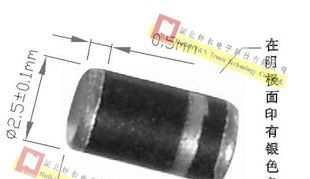

贴片整流二极管 SM4007 DO-213AB
信息内容：SYMBOLSMUNITS4001400240034004400540064007峰值反向电压Maximum current Peak Reverse VoltageVRRM501002004006008001000Volts反向有效电流Maximum RMS VoltageVRMS3570140280420560700Volts直流阻断电压Maximum DC Blocking VoltageVDC501002004006008001000Volts正向平均整流电流TT=60℃Maximum Average Forward Rectified CurrentI(AV)1.0Amps正向峰值浪涌电流Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method)IFSM30Amps2.0A直流电时正向瞬间电压降Maximum Instantaneous Forward Voltage @2.0AVF1.1Volts反向漏电流Maximum DC Reverse Current @ TA=25℃at Rated DC Blocking Voltage @ TA=125℃IR5.0100.0uA典型结电容Typical Junction Capacitance ( Note 2 )CJ15pF工作温度存储温度Operating AND Storage Temperature RangeTJ/TSTG-55 to +150℃ 大量供应DO-213AB封装 SM4007 SM4006 SM4005 SM4004 SM4003 SM4002 SM4001 标准整流二极管。
