AR354 BUTTON二极管
| 价 格： | 0.60 | |
| 是否提供加工定制： | 是 | |
| 产品类型： | 整流管 | |
| 是否进口： | 否 | |
| 品牌/商标： | PN | |
| 型号/规格： | AR354/ARS354 | |
| 材料： | 硅(Si) | |
| 主要参数： | 正向直流电流35A 反向击穿电压大于400V | |
| 用途： | 车用发电机整流二极管 |
|
SYMBOL |
| AR354 / ARS354 |
|
UNITS | ||||
峰值反向電壓 Maximum recurrent reverse voltage |
VRRM |
|
|
400 |
|
|
Volts | ||
RMS輸入電壓 Maximum RMS voltage |
VRMS |
|
|
280 |
|
|
Volts | ||
直流阻斷電壓 Maximum DC blocking voltage |
VDC |
|
|
400 |
|
|
Volts | ||
平均正向整流電流 Maximum average forward rectified current at Tc=60℃ |
I(AV) |
35 |
Amps | ||||||
正向峰值浪涌電流 Peak forward surge current single sine-wave on rated load (JEDEC Method) |
IFSM |
300 |
Amps | ||||||
35A時正向瞬間電壓降 Maximum instantaneous forward voltage drop at6A,Tj=25℃ |
VF |
1.0 |
Volts | ||||||
反向漏電流 Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ |
IR |
5.0 100.0 |
μA | ||||||
工作溫度和存儲溫度 Operating and Storage Temperature Range | TJ TSTG |
-55 TO +150 | ℃ | ||||||
公司大量提供：AUTO ARS2505 THRU ARS2512 纽扣二极管
AUTO ARS3505 THRU ARS3510 纽扣二极管
AUTO ARS5005 THRU ARS5010 纽扣二极管
以及25A /35A/50A各种规格的TVS雪崩二极管
- 所属城市：湖北
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周慧
- 电话：8607124767777
- 传真：8607124777999
- 手机：
- QQ ：

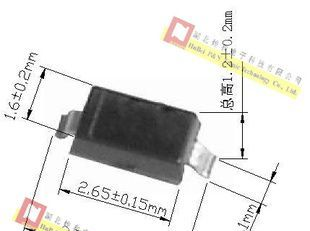

整流二极管 FM4007 SOD-123
信息内容：SYMBOLFM4001-MFM4002-MFM4003-MFM4004-MFM4005-MFM4006-MFM4007 -MUNITS峰值反向电压MaximumCurrent PeakReverse VoltageVRRM501002004006008001000Volts反向有效电压Maximum RMS VoltageVRMS3570140280420560700Volts直流阻断电压Maximum DC Blocking VoltageVDC501002004006008001000Volts正向平均整流电流TA=75℃Maximum Average Forward Rectified CurrentI(AV)1.0Amps正向峰值浪涌电流Peak Forward Surge Current Single Sine-wave on Rated Load (JEDEC Method)IFSM30.0Amps1.0A直流电时瞬间电压降Maximum Instantaneous Forward Voltage Drop at 1.0A DCVF1.1Volts反向漏电流Maximum DC Reverse Current TA=25℃at Rated DC Blocking Voltage TA=100℃IR5.050.0uA典型结电容Typical Junction Capacitance (NOTE 1)CJ15pF典型热阻Typical temperature Resistance (NOTE 2)RθJA60℃/W工作温度存储温度OperatingANDStorageTemperature RangeTJ/TSTG-65 to +150℃

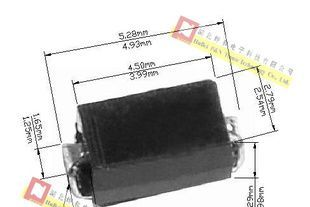

HER高效整流二极管 HA2A HA2K
信息内容：SYMBOLHA2AHA2BHA2DHA2GHA2JHA2KUNITS峰值反向电压Maximum current Peak Reverse VoltageVRRM50100200400600800Volts反向有效电流Maximum RMS VoltageVRMS3570140280420560Volts直流阻断电压Maximum DC Blocking VoltageVDC50100200400600800Volts正向平均整流电流TT=110℃Maximum Average Forward Rectified CurrentI(AV)2.0Amps正向峰值浪涌电流Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method)IFSM50Amps2.0A直流电时正向瞬间电压降Maximum Instantaneous Forward Voltage @ 2.0AVF1.01.31.7Volts反向漏电流Maximum DC Reverse Current @ TA=25℃at Rated DC Blocking Voltage @ TA=125℃IR5.0200.0uA逆向恢复时间Maximum Reverse Recovery Time ( Note 1 )Trr5075nS典型结电容Typical Junction Capacitance ( Note 2 )CJ17.0pF典型热阻Typical Thermal Resistance( Note 3)RΘJL30.0℃/W工作温度存储温度Operating AND Storage Temperature RangeTJ/TSTG-55 to +150℃
