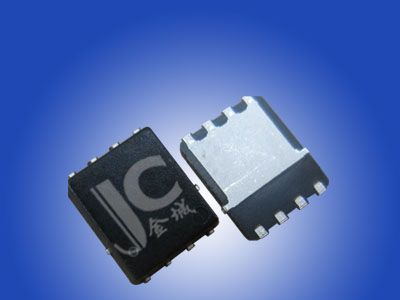

供应 场效应管 BSC020N025,BSC020N025SG,20N025S
| 价 格： | 面议 | |
| 型号/规格： | BSC020N025SG,QFN-8 5*6/PG-TDSON-8,SMD/MOS,N场,25V,100A | |
| 品牌/商标： | INFINEON（英飞凌） | |
| 封装形式： | QFN-8 5*6/PG-TDSON-8 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 贴片式 | |
| 包装方式： | 5000/盘 |
| 型号：BSC020N025SG | ||||
| 标记:20N025S | ||||
| 类型：场效应管 | ||||
| 通道极性:N通道 | ||||
| 封装：QFN-8 5*6/PG-TDSON-8 | ||||
| Parameter | Symbol | Conditions | Value | Unit |
| Drain-source breakdown voltage | V(BR)DSS | VGS=0V,ID=1mA | 25 | V |
| Continuous drain current | ID | VGS=10V,TC=25℃ | 100 | A |
| Pulsed drain current | IDM | TC=25℃ | 200 | A |
| Avalanche energy, single pulse | EAS | ID=50A, RGS=25Ω | 800 | mJ |
| Gate source voltage | VGS | ±20 | V | |
| Power dissipation | Ptot | TC=25℃ | 104 | W |
| Gate threshold voltage | VGS(th) | VDS=VGS,ID=110µA | 2 | V |
| Drain-source on-state resistance | RDS(on) | VGS=10V, ID=50A | 2 | mΩ |
| Input capacitance | Ciss | VGS=0V,VDS=15V, f=1MHz | 6230 | PF |
| Transconductance | gfs | |VDS|>2|ID|RDS(on)max,ID=50A | 131 | S |
4、Q Q:4006262666
(产品图片,产品参数,产品PDF等产品相关信息在线了解\查询\.)
