供应施克SICK光纤传感器 LL3-TR03 LL3-TM03全新原装

价格：		面议
型号/规格：		LL3-TR03 LL3-TM03
品牌/商标：		施克SICK

详细介绍
企业详情

品牌：	施克/SICK	型号：	LL3-TR03
种类：	光学	材料：	聚合物
材料物理性质：	绝缘体	材料晶体结构：	非晶
制作工艺：	集成	输出信号：	开关型
防护等级：	IP67

Photoelectric proximity switch, energetic, Product group W100

Model Name

WT100-N1439

Part No.

6026078

Energetic photoelectric proximity switches for standard applications

Visible red light as alignment aid

Switching point adjustable

Easy mounting through integrated mounting hole M3

Product features
	Sensing range min ... max:	0 mm ... 700 mm, 0 mm ... 900 mm
	Relating to:	Object with 90 % remission (based on standard white to DIN 5033)
	Adjustment:	Potentiometer
	Light source:	LED
	Type of light:	Red light
	Wave length:	680 nm
	Light spot diameter:	Approx. 55 mm at 400 mm distance

Technical data
	Design:	cuboid
	Dimensions (W x H x D):	11 mm x 31 mm x 20 mm
	Angle of dispersion:	Ca. 6.8 °
	Supply voltage min ... max:	DC 10 ... 30 V
	Ripple:	± 10 %
	Power consumption:	<= 30 mA
	Switching output voltage:	NPN: open collector: Q
	Switching output:	Light-/dark-switching via rotary switch
	Signal voltage NPN HIGH / LOW:	approx. Vs / < 1.8 V
	Output current max.:	100 mA
	Response time:	<= 0.5 ms
	Switching frequency:	1,000 Hz
	Connection type:	cable, 2 m
	Cable material:	PVC
	Cable diameter:	Ø 3.8 mm
	Number of cores:	3
	Conductor cross section:	0.18 mm²
	Circuit protection:	V_Sconnections reverse-polarity protected / In-/outputs short-circuit protected / Outputs overcurrent and short-circuit protected
	Enclosure rating:	IP 65
	Ambient operation temperature, min ... max:	-25 °C ... +55 °C
	Ambient storage temperature, min ... max:	-40 °C ... +70 °C
	Weight:	ca. 53 g
	Housing material:	ABS
	Items supplied:	1 mounting bracket BEF-W100-A


	Show Image
	Online data sheet
	Copy page URL
	Send to a friend
	Bookmark this page

	Literature
	EC-Declaration of Conformity
	Data sheet
	Operating Instruction
	more...

	Info service
	Dimensional drawing
	Adjustment possible
	Connection type
	Connection diagram
	Operating reserve
	Sensing range diagram
	CAD Link

供应 WT160-F410 施克SICK光电开关

信息内容：

是否提供加工定制：是品牌：SICK/施克型号：WT160-F410 结构类型：电源内藏型检测方式：HJ 电源电压：10-24 24-240（V）输出方式：NPN PNP DBU 使用环境温度：-27-68（℃）产品认证：CE 用途：测量 Photoelectric proximity switch, energetic, Product group W100 Model Name WT100-N1439 Part No. 6026078 ...

详细内容>>

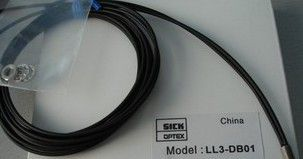

供应施克SICK光纤传感器 LL3-DB02，LL3-DB01全新原装
