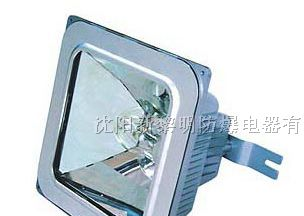

CNFC9112防眩泛光灯

CNFC9112防眩泛光灯，NFC9112，防眩灯，泛光灯，节能防眩泛光灯
NFC9131
泛光灯，防眩泛光灯，强光泛光灯，无极泛光灯，防爆泛光灯，投光泛光灯，大功率泛光灯
一，概括：

满足各类装置、平台、廊道、通道及车间、厂房等场所作泛光照明的需要，无眩光、无重影，防震耐腐蚀，节能、安全可靠。

二、性能特点：

高效节能:采用高光效、长寿命气体放电灯作光源，并通过先进的配光设计和特殊工艺处理，光线柔和均匀、无眩光，功率因数＞0.90，平均使用寿命在10000小时以上。采用优化的结构设计和高强度铝合金外壳，具有抗强力震动和冲击能力。
设计: 轻轻翻转透明件即可更换灯泡，十分方便。灯具和电器箱为分体式设计，体积小、重量轻，结构紧凑美观，外形简洁流畅。
适用环境:耐腐蚀外壳材料和表面涂层处理，确保灯具在恶劣环境中不腐蚀、不生锈。
安装方式:灯杆、吊顶和吊杆等多种安装方式，可满足不同环境照明需要。

三、注意事项：

1、安装和维护灯具时，必须切断电源。
2、使用时，灯具表面有一定的温升，属正常现象；透明件中心温度较高，不得触摸。
3、该灯具适宜的安装高度为4~6米，投射范围Ф15米。
4、如果此灯具的外部软缆或软线损坏了，该线要由制造厂或其服务代理商或人业更换

四、主要技术参数

1 额定电压 :220V

2 光源（MH气体放电灯 或PSH高压钠灯）

  额定功率:150W/ 75W

  光通量:38000lm

平均使用寿命:20000 h

3 引入电缆外径: φ8~10mm

五、品质保证
本产品严格按照ISO9001:2000国际质量管理体系标准进行质量控制,确保产品质量高于国家标准,完全达到设计要求,产品实行6年保用,光源保用一年, 自购买之日起6年内，产品正常使用下出现任何故障由本公司负责免费维护.

泛光灯，防眩泛光灯，强光泛光灯，无极泛光灯，防爆泛光灯，投光泛光灯，大功率泛光灯
  13968793493     18358770130

QQ535429927

0577-27772857

CNFC9112 anti-dazzle floodlights, NFC9112, antiglare lamp, flood light, energy saving antidazzle floodlights
NFC9131
Flood lights, floodlights glare glare, floodlights, endless flood lights, flood lights, cast light floodlights, high-power floodlight
One, overview:
Meet the needs of all types of device, platform, corridor, passageway and workshop, workshop for flood lighting needs, no glare, no ghosting, shock-proof corrosion-resistant, energy saving, safe and reliable.
Two, performance characteristics:
High efficiency energy saving: using high Guangxiao, long-life gas discharge lamp as the light source, and advanced through the light distribution design and special processing technology, soft and uniform light, no glare, power factor > 0.90, average service life of 10000 hours or more. With optimized structure design and high strength aluminum alloy shell, resistant to strong vibration and shock.
Design: gently flip the transparent bulb can be replaced, very convenient. Lighting and electrical box for split-type design, small volume, light weight, compact structure and beautiful appearance, concise and fluent.
Application environment: corrosion casing material and surface coating, to ensure that the lighting in the harsh environment of corrosion, rust.
Installation: lamp, ceiling and boom and so on many kinds of installation, to meet the different needs of the environment lighting.
In three, the matters needing attention:
1, installation and maintenance of lights, the power must be cut off.
In 2, when in use, the surface has a certain temperature or lamps, is a normal phenomenon; the transparent member center temperature is higher, not to touch.
In 3, the lamp fitting installation height of 4 ~ 6 meters, 15 meters range with maximal projection.
4, if the lamp external flexible cable or cord is damaged, the line by the factory or the service agents or professional people industry replacement
In four, the main technical parameters
Rated voltage: 1 220V
The 2 light source ( MH gas discharge lamp or PSH HPS )
Rated power : 150W / 75W
Luminous flux: 38000lm
Average service life: 20000 H
3: introduction of outer diameter of cable diameter of 8 ~ 10mm
Five, quality assurance
This product in strict accordance with the ISO9001 : 2000 international quality management system standards for quality control, ensure product quality is higher than the national standards, fully meet the design requirements, products 6 years warranty, the light source is guaranteed for one year, since the purchase within 6 years from the date of the product, any fault occurs under normal operation condition of the company is responsible for free maintenance.
Flood lights, floodlights glare glare, floodlights, endless flood lights, flood lights, cast light floodlights, high-power floodlight
13968793493 18358770130
QQ535429927
0577-27772857
