供应HR1224WF2 CSB电池
| 价 格： | 面议 | |
| 型号/规格： | HR1224WF2F1 | |
| 品牌/商标： | CSB |
CSB电池(CSB蓄电池) HR1224WF2F1
HR1224W
12V 24w/cell
HR 1224WF2F1 is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used for more than 260 cycles at 100% discharge in cycle service, up to 5 yeas in standby service.
规格书
局数 6
电压值 12V
安培数 24W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)
重量(kg) Approx. 1.95. (4.30 lbs.)
放电电流5秒(A) 100/130A (5sec.)
内阻(mΩ) Approx. 21mΩ
温度工作范围 Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用温度工作范围 25°C ± 3°C (77°F ± 5°F)
浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
安培数/只 2.4A
循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子 F1/F2-Faston Tab187/250
电槽组材质 ABS(UL94-HB/FileE50263)*Flammability resistance of(UL94-V0/File E54297) can be available upon request.
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 任远峰
- 电话：0755-83796159
- 传真：0755-83794083
- 手机：13602536280
- QQ ：

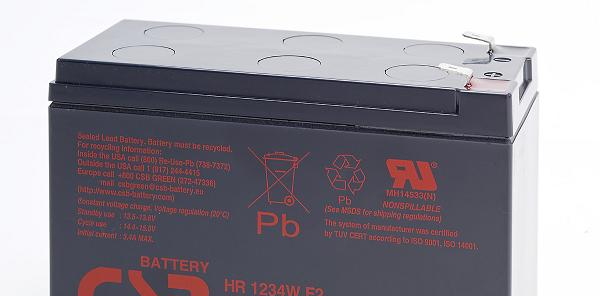

供应HR1234WF2 CSB电池
信息内容：CSB电池(CSB蓄电池) HR1234WF2 HR1234W 12V 34w/cell HR 1234WF2 is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used for more than 260 cycles at 100% discharge in cycle service, up to 5 yeas in standby service. 规格书 局数 6 电压值 12V 安培数 34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F) 重量(kg) Approx. 2.50kg. (5.51lbs.) 放电电流5秒(A) 100/130A (5sec.) 内阻(mΩ) Approx. 19mΩ 温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) 一般使用温度工作范围 25°C ± 3°C (77°F ± 5°F) 浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F) 安培数/只 3.4A 循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F) 单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter....

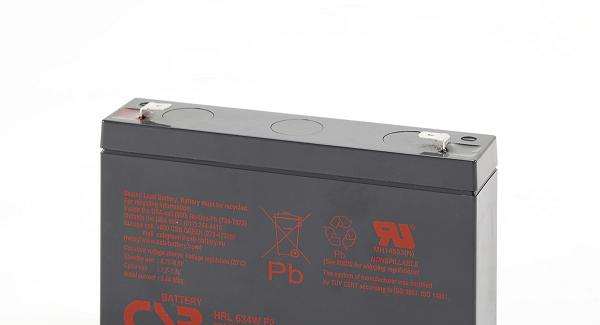

供应HRL634WF2 CSB电池
信息内容：CSB电池(CSB蓄电池) HRL系列 HRL634W 6V 34w/cell HRL634W F2FR is specially designed for high efficient discharge and long life.application.It can be used for more than 260 cycles at 100% discharge in cycle service, up to 8 years in standby service. 规格书 局数 3 电压值 6V 安培数 34W @ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F) 重量(kg) Approx. 1.32kg(2.91 lbs) 放电电流5秒(A) 130A (5 Sec) 内阻(mΩ) Approx. 10 mΩ 温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) 一般使用温度工作范围 25°C±3°C(77°F±5°F) 浮充使用充电条件 6.75 to 6.9 VDC/Unit Average at 25°C(77°F) 安培数/只 3.4A 循环寿命测试条件 7.2 to 7.5 VDC/Unit Average at 25°C(77°F) 单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C(77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter. 端子 F2-Faston Tab250 电槽组材质 ABS(UL94-HB/File E50263)*Flammability resistanc...
