XL7002 降压型直流电源变换器芯片(高电压型)
| 价 格： | 面议 | |
| 型号/规格： | XL7002 | |
| 品牌/商标： | XLSEMI |
Features
n Wide 28 to 80V Input Voltage Range.
n 1.25V reference adjustable version.
n Recommend Output Voltage 5V to 20V.
n Current Mode Control Provides Excellent
Transient Response.
n Fixed 180KHz Switching Frequency.
n Maximum 0.5A Switching Current.
n Excellent line and load regulation.
n EN PIN TTL shutdown capability.
n Internal optimize power HV-MOSFET.
n Built in Frequency Compensation.
n Built in Soft-Start Function.
n Built in Thermal Shutdown Function.
n Built in Current Limit Function.
n Available in SOIC-8 package.
Applications
n EBIKE Controller Supply.
n High Voltage Buck Converter.
n Portable Electronic Equipment.
General Description
The XL7002 regulator is a wide input range,
current mode, DC/DC converter which is
capable of operation high input voltage up to
80V. The XL7002 built in N-channel power
MOSFET and fixed frequency oscillator,
current-mode architecture results in stable
operation over a wide range of supply and
output voltages.
The XL7002 regulator is special design for
portable electronic equipment.
Figure1. Package Type of XL7002
| 降压型直流电源变换器芯片(高电压型) | |||||
| XL7002 | 28V ~ 80V | 0.5A | 180KHz | Adj (1.25V) | SOP8L |
| XL7003 | 28V ~ 80V | 1A | 180KHz | Adj (1.25V) | TO252-5L |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张小姐
- 电话：0755-82714131
- 传真：0755-82714131
- 手机：15818717309
- QQ ：
XL4012 降压型直流电源变换器芯片(大功率型)
信息内容：12A 300KHz 32V Buck DC to DC Converter XL4012Rev 2.0 www.xlsemi.com1Features Wide 5V to 32V Input Voltage Range Output Adjustable from 0.8V to 30V Maximum Duty Cycle 100% Minimum Drop Out 0.6V Fixed 300KHz Switching Frequency 12A Constant Output Current Capability Internal Optimize Power MOSFET High efficiency Excellent line and load regulation Built in thermal shutdown function Built in current limit function Built in output short protection function Available in TO-220 packageApplications LCD Monitor and LCD TV Digital Photo Frame Set-up Box ADSL Modem Telecom / Networking EquipmentGeneral DescriptionThe XL4012 is a 300 KHz fixed frequencyPWM buck (step-down) DC/DC converter,capable of driving a 12A load with highefficiency, low ripple and excellent line andload regulation. Requiring a minimumnumber of ...

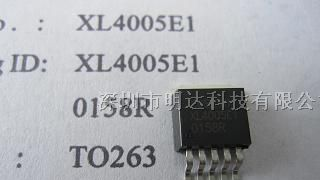

降压型直流电源变换器芯片(大功率型) XL4005
