降压型直流电源变换器芯片(大功率型) XL4005
| 价 格： | 面议 | |
| 型号/规格： | XL4005 | |
| 品牌/商标： | XLSEMI |
Features
Wide 5V to 32V Input Voltage Range
Output Adjustable from 0.8V to 30V
Maximum Duty Cycle 100%
Minimum Drop Out 0.6V
Fixed 300KHz Switching Frequency
5A Constant Output Current Capability
Internal Optimize Power MOSFET
High efficiency
Excellent line and load regulation
TTL shutdown capability
EN pin with hysteresis function
Built in thermal shutdown function
Built in current limit function
Built in output short protection function
Available in TO-263 package
Applications
LCD Monitor and LCD TV
Digital Photo Frame
Set-up Box
ADSL Modem
Telecom / Networking Equipment
| 降压型直流电源变换器芯片(大功率型) | |||||
| 产品型号 | 输入电压 | 输出电流 | 开关频率 | 电压版本 | 封装类型 |

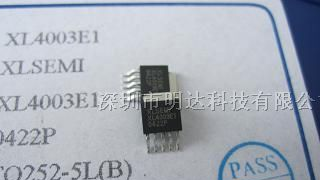

| XL4003 | 5V ~ 32V | 4A | 300KHz | Adj (0.8V) | TO252-5L |
| XL4005 | 5V ~ 32V | 5A | 300KHz | Adj (0.8V) | TO263-5L |
| XL4012 | 5V ~ 32V | 12A | 300KHz | Adj (0.8V) | TO220-5L |
