升压型直流电源变换器芯片 XL6011
| 价 格： | 面议 | |
| 型号/规格： | XL6011 | |
| 品牌/商标： | XLSEMI |
Features
n Wide 5V to 32V Input Voltage Range
n Positive or Negative Output Voltage
Programming with a Single Feedback Pin
n Current Mode Control Provides Excellent
Transient Response
n 1.25V reference adjustable version
n Fixed 180KHz Switching Frequency
n Maximum 5A Switching Current
n SW PIN Built in Over Voltage Protection
n Excellent line and load regulation
n EN PIN TTL shutdown capability
n Internal Optimize Power MOSFET
n High efficiency up to 94%
n Built in Frequency Compensation
n Built in Soft-Start Function
n Built in Thermal Shutdown Function
n Built in Current Limit Function
n Available in TO220-5L package
Applications
n EPC / Notebook Car Adapter
n Automotive and Industrial Boost /
Buck-Boost / Inverting Converters
n Portable Electronic Equipment
General Description
The XL6011 regulator is a wide input range,
current mode, DC/DC converter which is
capable of generating either positive or
negative output voltages. It can be configured
as either a boost, flyback, SEPIC or inverting
converter. The XL6011 built in N-channel
power MOSFET and fixed frequency
oscillator, current-mode architecture results in
stable operation over a wide range of supply
and output voltages.
The XL6011 regulator is special design for
portable electronic equipment applications.
Figure1. Package Type of XL6011
| 升压型直流电源变换器芯片 | ||||||
| 产品型号 | 输入电压 | 输出电压 | 开关电流 | 开关频率 | 电压版本 | 封装形式 |
| XL6007 | 5V ~ 18V | 42V | 2A | 400KHz | Adj (1.25V) | SOP8L |
| XL6008 | 5V ~ 32V | 60V | 3A | 400KHz | Adj (1.25V) | TO252-5L |
| XL6009 | 5V ~ 32V | 60V | 4A | 400KHz | Adj (1.25V) | TO263-5L |
| XL6011 | 5V ~ 32V | 60V | 5A | 180KHz | Adj (1.25V) | TO220-5L |
| XL6012 | 5V ~ 32V | 60V | 5A | 180KHz | Adj (1.25V) | TO263-5L / TO220-5L |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张小姐
- 电话：0755-82714131
- 传真：0755-82714131
- 手机：15818717309
- QQ ：

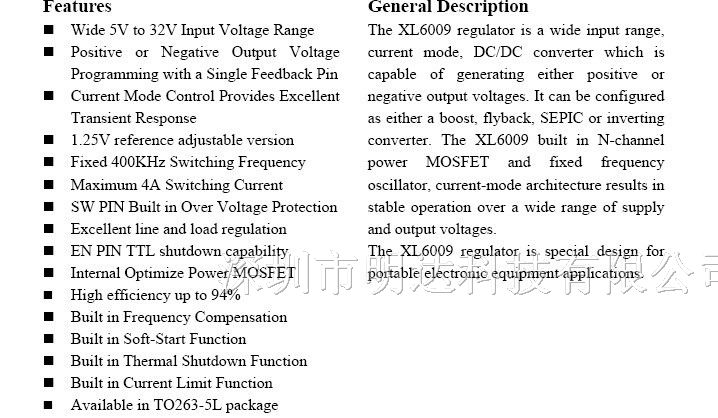

升压型直流电源变换器芯片 XL6009
信息内容：Featuresn Wide 5V to 32V Input Voltage Rangen Positive or Negative Output VoltageProgramming with a Single Feedback Pinn Current Mode Control Provides ExcellentTransient Responsen 1.25V reference adjustable versionn Fixed 400KHz Switching Frequencyn Maximum 4A Switching Currentn SW PIN Built in Over Voltage Protectionn Excellent line and load regulationn EN PIN TTL shutdown capabilityn Internal Optimize Power MOSFETn High efficiency up to 94%n Built in Frequency Compensationn Built in Soft-Start Functionn Built in Thermal Shutdown Functionn Built in Current Limit Functionn Available in TO263-5L packageApplicationsn EPC / Notebook Car Adaptern Automotive and Industrial Boost /Buck-Boost / Inverting Convertersn Portable Electronic Equipment 升压型直流电源变换器芯片 产品型号 输入电压 输出电压 开关电流 开关频率 电压版本 封装形式 XL6007 5V ~ 18V 42V 2A 400KHz Adj (1.25V) SOP8L XL6008 5V ~ 32V 60V 3A 400KHz Adj (1.25V) TO252-5L...

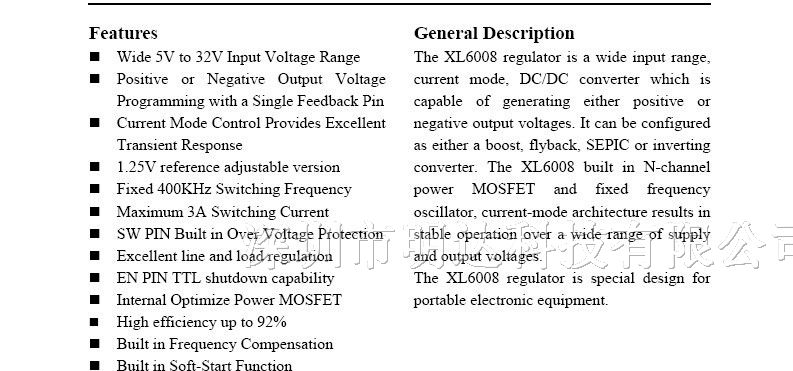

升压型直流电源变换器芯片 XL6008
