升压型直流电源变换器芯片 XL6008
| 价 格： | 面议 | |
| 型号/规格： | XL6008 | |
| 品牌/商标： | XLSEMI |
Features
n Wide 5V to 32V Input Voltage Range
n Positive or Negative Output Voltage
Programming with a Single Feedback Pin
n Current Mode Control Provides Excellent
Transient Response
n 1.25V reference adjustable version
n Fixed 400KHz Switching Frequency
n Maximum 3A Switching Current
n SW PIN Built in Over Voltage Protection
n Excellent line and load regulation
n EN PIN TTL shutdown capability
n Internal Optimize Power MOSFET
n High efficiency up to 92%
n Built in Frequency Compensation
n Built in Soft-Start Function
n Built in Thermal Shutdown Function
n Built in Current Limit Function
n Available in TO252-5L package
Applications
n Automotive and Industrial Boost /
Buck-Boost / Inverting Converters
n Portable Electronic Equipment
General Description
The XL6008 regulator is a wide input range,
current mode, DC/DC converter which is
capable of generating either positive or
negative output voltages. It can be configured
as either a boost, flyback, SEPIC or inverting
converter. The XL6008 built in N-channel
power MOSFET and fixed frequency
oscillator, current-mode architecture results in
stable operation over a wide range of supply
and output voltages.
The XL6008 regulator is special design for
portable electronic equipment.
Figure1. Package Type of XL6008

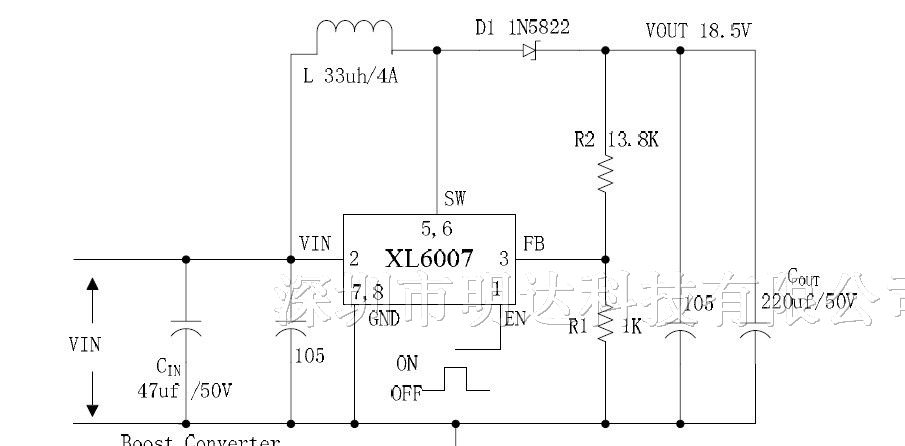

| 升压型直流电源变换器芯片 | ||||||
| 产品型号 | 输入电压 | 输出电压 | 开关电流 | 开关频率 | 电压版本 | 封装形式 |
| XL6007 | 5V ~ 18V | 42V | 2A | 400KHz | Adj (1.25V) | SOP8L |
| XL6008 | 5V ~ 32V | 60V | 3A | 400KHz | Adj (1.25V) | TO252-5L |
| XL6009 | 5V ~ 32V | 60V | 4A | 400KHz | Adj (1.25V) | TO263-5L |
| XL6011 | 5V ~ 32V | 60V | 5A | 180KHz | Adj (1.25V) | TO220-5L |
| XL6012 | 5V ~ 32V | 60V | 5A | 180KHz | Adj (1.25V) | TO263-5L / TO220-5L |
